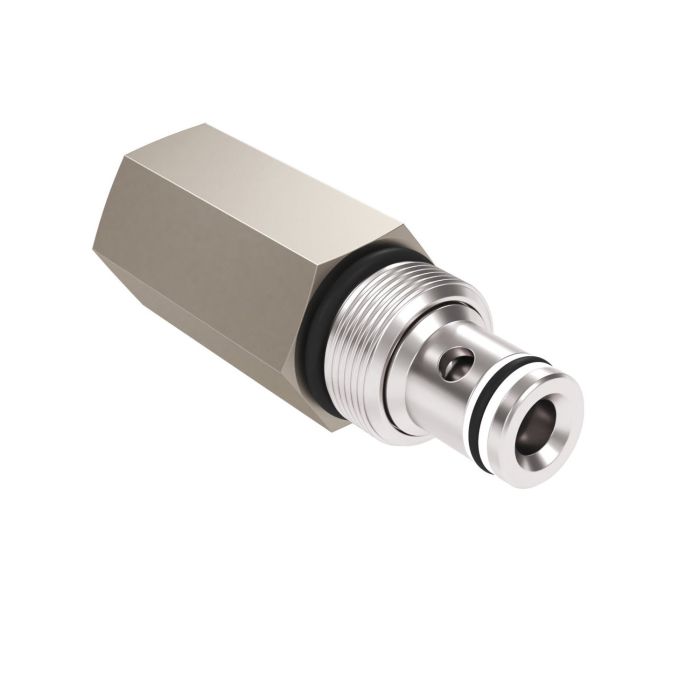

VICKERS RV5-10-S-S8T-50/36

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers RV5-10-S-S8T-50/36 is a spool-style pressure control valve rated to 350 bar (5,000 psi) with a maximum flow capacity of 300 L/min (80 USgpm). This unit supports a flow rate of 114 litres per minute and features a 1/2" port size, making it well suited for integration into compact hydraulic assemblies where space is limited.

Part of the Vickers by Danfoss RV5-10 series, this valve is engineered for use in harvesters, refuse haulers, and a range of other demanding mobile and industrial applications. The series is recognized for its reliable performance, economical design, and installation flexibility, delivering consistent pressure control without requiring excessive mounting space.

SKU: 02-183109

Supplier Part Number (MPN): 02-183109

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Screw
Body Material
Steel
Cavity
C-10-2
Connection Type
SAE
Dimensions
2.5 in L x 1.74 in W x 5.63 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
SAE
Seal Material
Buna-N
Segment Code
B
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (2)

Question by: Norm S on Nov 29, 2025, 8:51 AM
Got a harvester sitting idle cause the pressure valve gave out, will this RV5-10 swap in without a bunch of custom work given the 1/2" port size?
Answer by: Customer Support on Nov 30, 2025, 11:24 AM
For most harvester hydraulic circuits using 1/2" ported assemblies, this valve drops in without needing custom fabrication. The spool-style design is built with installation flexibility in mind, so it fits into compact spaces where clearance is tight. Rated to 350 bar and capable of handling up to 300 L/min, it's got plenty of headroom for typical harvester circuit demands. The unit's flow rate sits at 114 litres per minute, so confirm that lines up with what your circuit is actually calling for before you pull the trigger.
Question by: Curt C on Oct 22, 2025, 2:42 PM
What kind of machines is this valve typically found in?
Answer by: Customer Support on Oct 24, 2025, 6:08 AM
This Vickers RV5-10 series valve is commonly used in demanding mobile and industrial applications like harvesters and refuse haulers.
