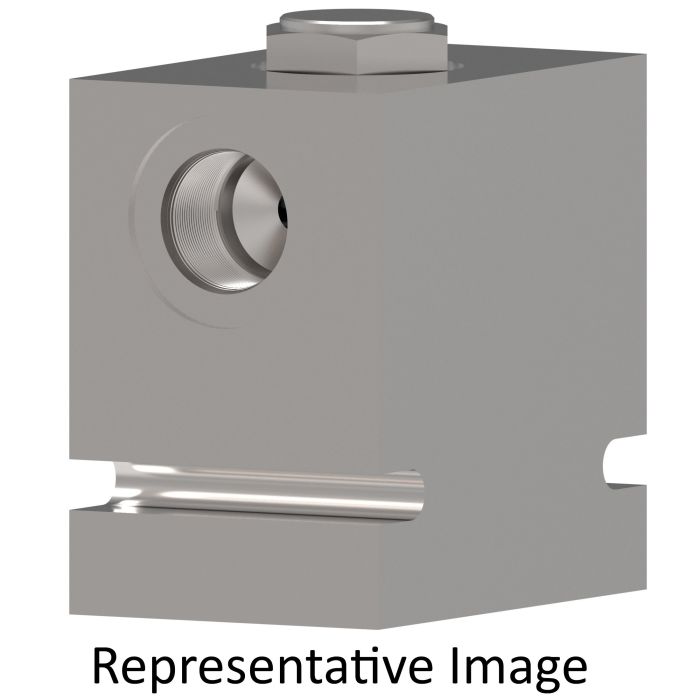

VICKERS CV2-20-P-16H-100

Description & Features

The Vickers CV2-20-P-16H-100 check valve is part of the CV2-20 series from Vickers by Danfoss / Eaton, designed for mobile and industrial hydraulic applications, including use in harvesters and refuse haulers.

This poppet style check valve offers high operational efficiency with low spring settings. It features a maximum pressure of 350 bar (5000 psi) and a flow rate of 227 liters per minute (60 US gpm).

SKU: 02-183777

Supplier Part Number (MPN): 02-183777

Specifications

Actuator Type Direct Acting	Body Material Aluminum	Cavity C-20-2	Connection Type SAE	Dimensions 4 in L x 1.87 in W x 4.55 in H	Domestic/Import Import	End Type SAE	Housing With Housing	Installation Type Screw-In Cartridge	Language English	Mounting Type Screw-In	Nominal Size #20	Number of Ports/Ways 2-Port	Pilot Piston Seal Without Pilot Piston Seal	Port Type SAE	Seal Material Buna-N	Series CV2-20 Series	Style Poppet

Product Questions & Answers (1)

Question by: Dwayne B on Jun 8, 2025, 8:16 PM

What kind of hydraulic setups is this check valve built for, and can it handle the pressure ranges you'd see on heavier mobile equipment?

Answer by: Customer Support on Jun 10, 2025, 8:24 AM

Built around mobile and industrial hydraulic systems, this valve covers applications like harvesters and refuse haulers where reliable flow control under load really matters. On the pressure side, it's rated up to 350 bar, which works out to 5000 psi, and it can move up to 227 liters per minute, or 60 US gpm. That puts it well within range for demanding mobile equipment running at high cycle rates.
