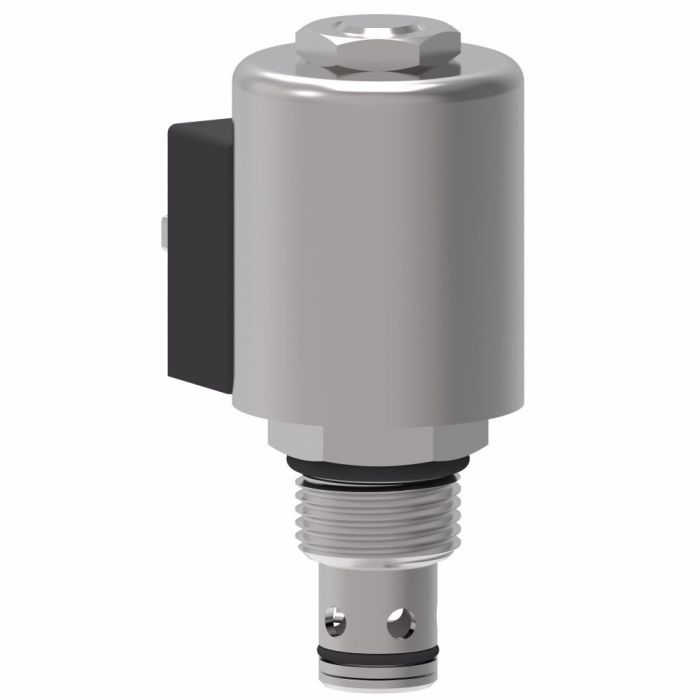

VICKERS SV14-10-0M-0-120AGH

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers SV14-10-0M-0-120AGH is a 3-way, 2-position solenoid valve built to handle demanding duty cycles in applications such as harvesters and refuse haulers. It operates on 120V AC and delivers a flow rate of 23 litres per minute, making it well suited for controlled directional flow functions in compact valve assemblies.

Constructed from hardened and ground steel, this valve is rated to 350 bar (5,000 psi) with a maximum system capacity of 227 L/min (60 USgpm), offering reliable performance within a compact form factor. The Vickers series is known for economical, consistent operation across both mobile and stationary industrial equipment.

SKU: 02-184306

Supplier Part Number (MPN): 02-184306

Specifications

Brand
Vickers by Danfoss
Configuration
Normally Closed
Dimensions
3.53 in L x 1.53 in W x 1.93 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Number of Ports/Ways
2-Way, 3-Way
Number of Positions
2
Series
SV14-10-C/CM Series

Product Questions & Answers (2)

Question by: Ronnie S on May 22, 2025, 8:55 PM
Will this here valve work on my harvester, or is it more for industrial type stuff?
Answer by: Customer Support on May 24, 2025, 6:29 AM
It's designed for both mobile equipment like harvesters and stationary industrial machinery. That dual purpose is pretty common for the Vickers line.
Question by: Roy K on Oct 28, 2025, 5:06 PM
Got a harvester that's been giving me grief with directional flow control. This a 3-way 2-position setup or something different?
Answer by: Customer Support on Oct 30, 2025, 6:52 AM
Yeah, it's a 3-way 2-position valve, so it's built for exactly that kind of directional flow work. Runs on 120V AC and handles up to 23 litres per minute at the valve itself, though the system can push up to 227 L/min overall. Rated to 350 bar, so it's got enough pressure capacity for heavy mobile equipment like harvesters without breaking a sweat.
