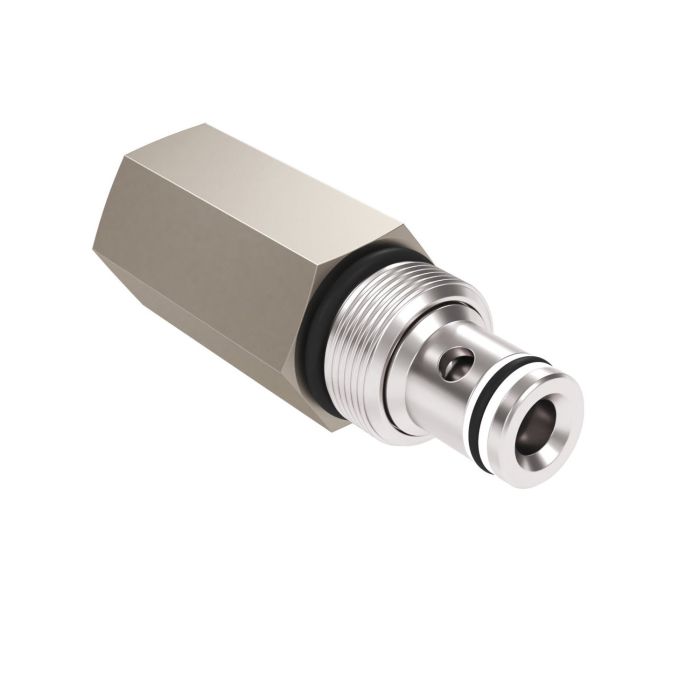

main product photo

VICKERS RV5-10-S-0-20/6.5

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic systems, the Vickers RV5-10-S-0-20/6.5 is a spool-style pressure control valve rated to 350 bar (5,000 psi) with a flow capacity of up to 300 L/min (80 USgpm). Its compact form factor makes it well-suited for space-constrained installations in harvesters, refuse haulers, and a broad range of mobile and stationary equipment.

Part of the Vickers by Danfoss/Eaton RV5-10 series, this valve delivers reliable pressure regulation with a maximum flow rate of 114 litres per minute in this configuration. The spool design supports flexible circuit integration while keeping installation footprint to a minimum, a practical advantage in mobile equipment where space and weight are ongoing constraints.

SKU: 02-198218

Supplier Part Number (MPN): 02-198218

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Dimensions
4.38 in L x 1 in W x 1 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (1)

Question by: Scott E on Aug 18, 2025, 7:46 PM
Flow rate on this one says 300 L/min in the specs but then mentions 114 litres per minute somewhere else. Which number actually applies to this valve?
Answer by: Customer Support on Aug 20, 2025, 9:27 AM
Both figures are real, just referring to different things. The 300 L/min and 5,000 psi ratings reflect the series ceiling for the RV5-10 platform as a whole. The 114 litres per minute is the actual rated flow for this specific configuration of the valve. So when you're sizing your circuit or calculating line losses, 114 L/min is the number that applies to this particular unit.
