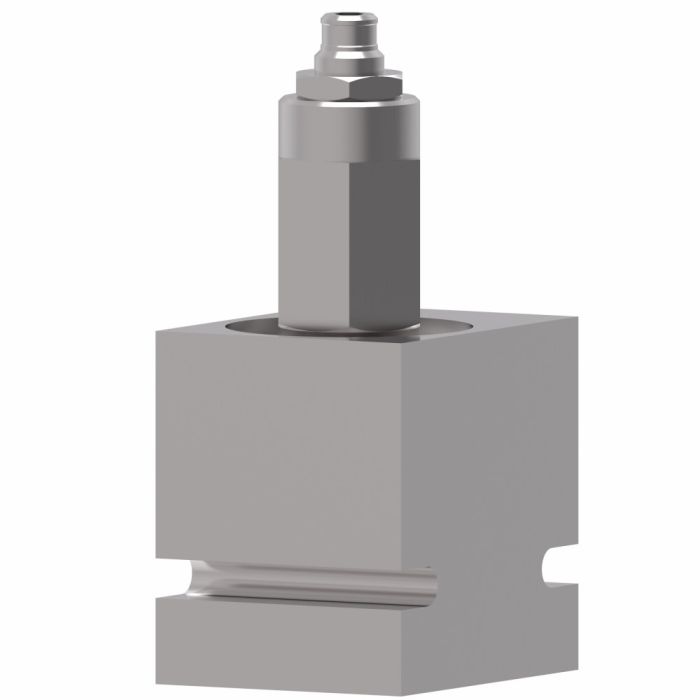

Designed for mobile and industrial hydraulic circuits, the Vickers FAR1-10-S-S8T-3 is a pressure-compensated flow control valve with integrated free reverse flow, making it well suited for harvesters, refuse haulers, and a range of industrial equipment. The 1/2" port size and compact form factor support straightforward integration into space-constrained systems without sacrificing performance.
Rated to 350 bar (5,000 psi) with a maximum system flow capacity of 350 L/min (92 US gpm), this valve delivers consistent, controlled flow at up to 38 litres per minute. Pressure compensation maintains steady output flow regardless of load-induced pressure variations, while the free reverse flow path eliminates the need for a separate check valve in return-line applications. The result is a reliable, economical solution from the Vickers line by Eaton/Danfoss, balancing functional capability with a compact, cost-effective design.
SKU: 02-198293
Supplier Part Number (MPN): 02-198293
|
Alternate Part Numbers
MINO-00900X09273
|
Application
Harvesters, refuse haulers, mobile and industrial applications
|
Brand
Danfoss – Hydraulics
|
Brand
Vickers
|
Pack Size
1.00
|
UOM
EA
|
Features
350 bar (5000 psi) & 350 L/min (92 USgpm)|Perfect balance of pressure and flow|Reliable, economical and compact
|
Flow Rate1
38 litre per minute
|
ICC
SICV Flow Control Valves
|
Language
English
|
Port Size
1/2"
|
Product Width
1.75
|
Style
Pressure Compensated with Free Reverse Flow
|
Sub Brand
Vickers
|
Supplier Part Number
02-198293
|
Product Weight
1.27 lbs
|
