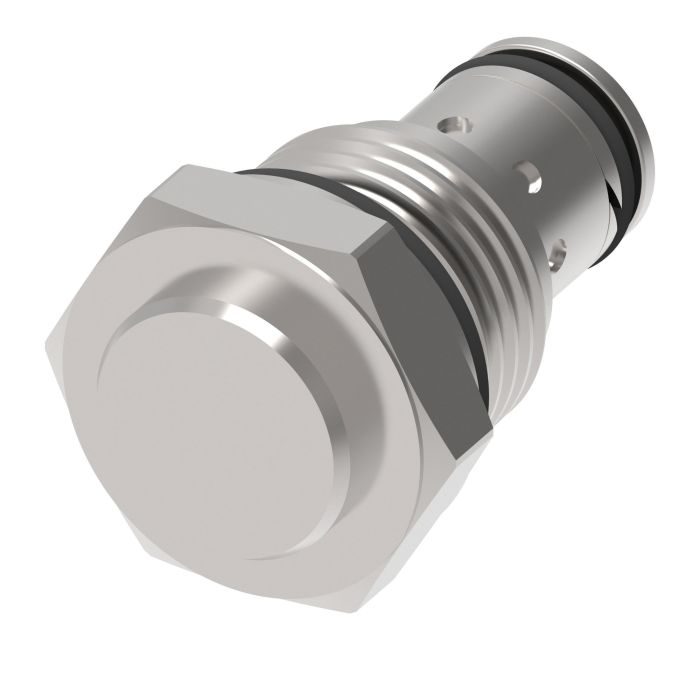

VICKERS CV3-8-P-0-030

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the Vickers CV3-8-P-0-030 is a poppet-style check valve rated for pressures up to 350 bar (5,000 psi) with a flow capacity of 227 L/min (60 USgpm). This unit is configured with a 30 L/min flow rate setting and low spring settings that support responsive, efficient flow control across a wide range of duty cycles.

Built under the Vickers brand by Danfoss/Eaton, the CV3-8 series is well suited for demanding mobile applications including harvesters and refuse haulers, as well as stationary industrial hydraulic systems. The poppet construction provides reliable sealing with minimal leakage, making it a practical choice where consistent back-pressure control is required.

SKU: 02-198932

Supplier Part Number (MPN): 02-198932

Specifications

Actuator Type
Direct Acting
Dimensions
0.87 in L x 1.43 in W x 0.87 in H
Domestic/Import
Import
Language
English
Mounting Type
Screw-In
Nominal Size
#08
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
A
Series
CV3-8 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rusty C on Nov 23, 2025, 3:06 PM
Reckon this'll hold up alright on a refuse truck, bouncing around all day?
Answer by: Customer Support on Nov 25, 2025, 6:45 AM
This Vickers CV3-8 series check valve is well-suited for demanding mobile applications like refuse haulers. The poppet construction ensures reliable sealing even with consistent back-pressure changes, keeping things running smoothly.
Question by: Shane W on Apr 28, 2025, 1:11 PM
Running a refuse hauler and need a check valve that won't leak back on us between cycles. This poppet-style unit rated for 5,000 psi look like it'd hold up to that kind of work?
Answer by: Customer Support on Apr 30, 2025, 8:45 AM
Poppet construction is exactly what you want for that application. The sealing surface on a poppet valve seats positively under pressure rather than relying on a sliding fit, so backflow and internal leakage stay minimal even through repeated pressure cycles. At 5,000 psi max and 60 GPM flow capacity, this valve has the headroom to handle the demands of a refuse hauler circuit without working at its limits during normal operation.
