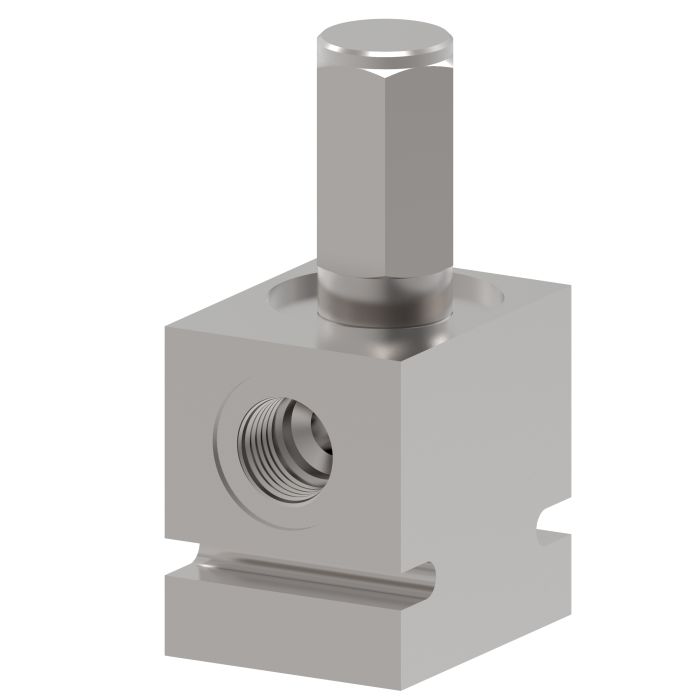

VICKERS RV5-10-F-8H-20/14

Ask A Question

Description & Features

Engineered for demanding environments, the Vickers RV5-10-F-8H-20/14 pressure control valve is an excellent choice for applications in harvesters, refuse haulers, and various mobile and industrial systems. Manufactured by Eaton Vickers, this valve offers reliability and compactness, ensuring maximum flexibility and minimal space usage in your hydraulic systems.

With a robust pressure capacity of up to 350 bar (5000 psi) and a flow rate of 114 liters per minute, it efficiently regulates hydraulic fluid flow. The valve features a 1/2" port size and a spool style design, providing economical performance suited to high-pressure environments. This makes it a versatile component for multiple industrial applications.

SKU: 02-199028

Supplier Part Number (MPN): 02-199028

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Factory Set
Body Material
Steel
Cavity
C-10-2
Connection Type
SAE
Dimensions
2.5 in L x 1.74 in W x 5.63 in H
Domestic/Import
Import
End Type
SAE
Housing
With Housing
Installation Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
SAE
Seal Material
Buna-N
Series
RV5-10 Series
Style
Spool

Product Questions & Answers (2)

Question by: Todd W on Mar 22, 2026, 11:35 AM
What kind of machines would this be good for? Looks like I could use it on my harvester.
Answer by: Customer Support on Mar 24, 2026, 6:50 AM
It's applicable to harvesters as well as refuse haulers and other mobile and industrial applications.
Question by: Billy P on Dec 19, 2025, 9:32 PM
what applications is this valve actually built for, like what kind of equipment are we talking here?
Answer by: Customer Support on Dec 21, 2025, 11:27 AM
Harvesters and refuse haulers are the primary mobile equipment this one sees action in, but it also fits right into general industrial hydraulic systems. If you're running something in that range, whether it's ag equipment or a stationary power unit, this valve covers both ends of that spectrum pretty well.
