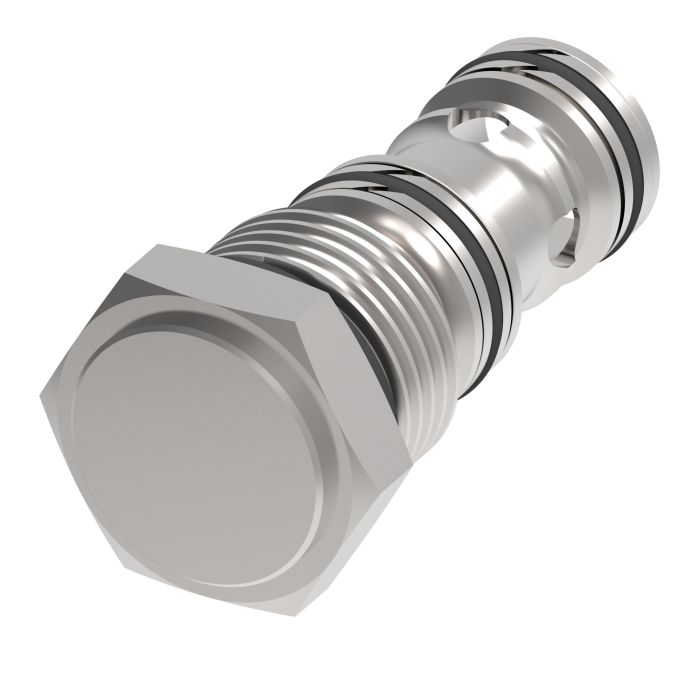

main product photo

VICKERS-POC1-10-F-HA10H-030

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, this poppet-style check valve handles flow rates up to 57 litres per minute and is rated to 350 bar (5,000 psi). The low spring setting supports high operational efficiency across demanding duty cycles, making it a practical choice for harvesters, refuse haulers, and similar mobile equipment.

The VICKERS-POC1-10-F-HA10H-030 features a 5/8" port size and belongs to the Vickers by Danfoss/Eaton POC1-10 Series. Its poppet construction provides reliable, leak-resistant seating under variable pressure conditions common in mobile and industrial hydraulic systems.

SKU: 02-199263

Supplier Part Number (MPN): 02-199263

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Body Material
Aluminum
Cavity
C-10-3
Dimensions
4.5 in L x 2.47 in W x 3.28 in H
Domestic/Import
Import
Housing
With Housing
Installation Type
Screw-In Cartridge
Language
English
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
3-Port
Pilot Piston Seal
Without Pilot Piston Seal
Port Type
SAE
Seal Material
Buna-N
Segment Code
C
Series
POC1-10 Series
Style
Poppet

Product Questions & Answers (1)

Question by: Clint B on Dec 17, 2025, 6:19 PM
Got a refuse hauler that keeps weeping at the check valve under load. Would this poppet-style unit hold up better than what I got in there now?
Answer by: Customer Support on Dec 19, 2025, 6:21 AM
Poppet construction tends to seat more reliably than ball or disc styles when pressure cycles a lot, which is pretty common on refuse equipment. Rated to 350 bar (5,000 psi) and built for exactly that kind of mobile duty cycle, this valve is a solid upgrade if your current one's leaking under variable load. The 5/8" port size is worth confirming against your existing hydraulic connections before you order, but the seating design on this one is specifically suited to handle the pressure swings you'd see on that type of rig.
