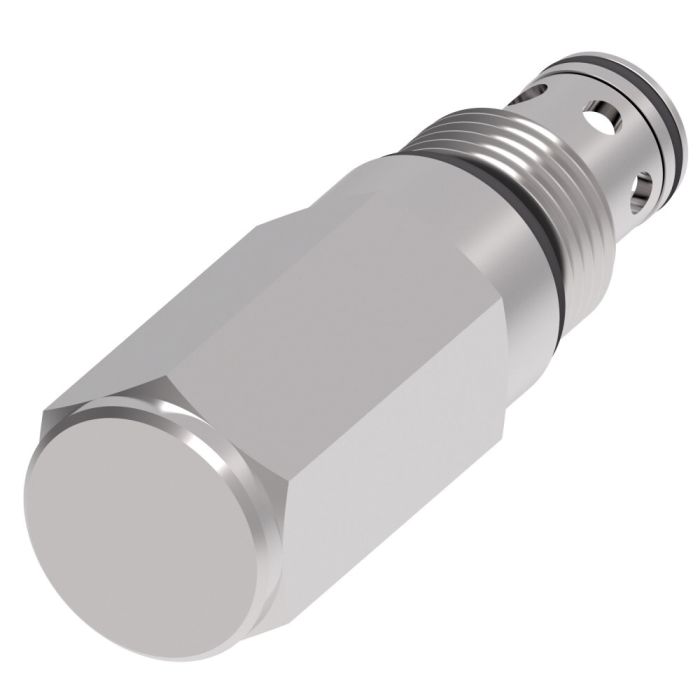

VICKERS RV5A-10-F-0-35/27.5

Ask A Question

Description & Features

The Vickers RV5A-10-F-0-35/27.5 is a highly reliable and economical pressure control valve designed for demanding applications such as harvesters, refuse haulers, and various mobile and industrial settings. With a flow rate capability of 114 liters per minute, this valve effectively regulates pressure up to 350 bar (5000 psi), ensuring optimal performance and safety. Its compact spool design allows for maximum flexibility and requires minimal installation space, making it an ideal choice for systems where space is at a premium.

Manufactured by Vickers, a trusted name in hydraulic solutions, this valve offers durability and consistent performance, further enhancing its suitability for rigorous industrial use. The RV5-10 series is engineered for robustness and efficiency, supporting a wide range of hydraulic applications with ease.

SKU: 02-199294

Supplier Part Number (MPN): 02-199294

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Factory Set
Body Material
Aluminum
Cavity
C-10-2
Dimensions
3.33 in L x 1.5 in W x 1.5 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Media
Hydraulic Fluids
Nominal Size
10
Number of Ports/Ways
2-Port
Port Type
Cartridge
Seal Material
Buna-N
Series
RV5-10 Series
Softgoods Material
Nitrile
Style
Spool

Product Questions & Answers (2)

Question by: Rhonda F on Dec 5, 2025, 1:50 PM
Flow rate on this one says 114 liters per minute but the features mention 300 L/min. which number actually applies to this valve?
Answer by: Customer Support on Dec 7, 2025, 11:37 AM
The 114 liters per minute is the rated flow for this specific model, the RV5A-10-F-0-35/27.5. The 300 L/min figure reflects the broader capacity ceiling of the RV5-10 series as a whole, not this particular configuration. For sizing and system planning purposes, 114 L/min is the number you want to work with.
Question by: Troy D on Nov 12, 2025, 8:01 PM
Reckon this valve would work good on a refuse truck, dealin' with all them pressure changes?
Answer by: Customer Support on Nov 14, 2025, 10:31 AM
Designed for demanding applications like refuse haulers, this pressure control valve can handle flow rates up to 114 liters per minute and pressures up to 350 bar (5000 psi), ensuring optimal performance and safety under varying conditions.
