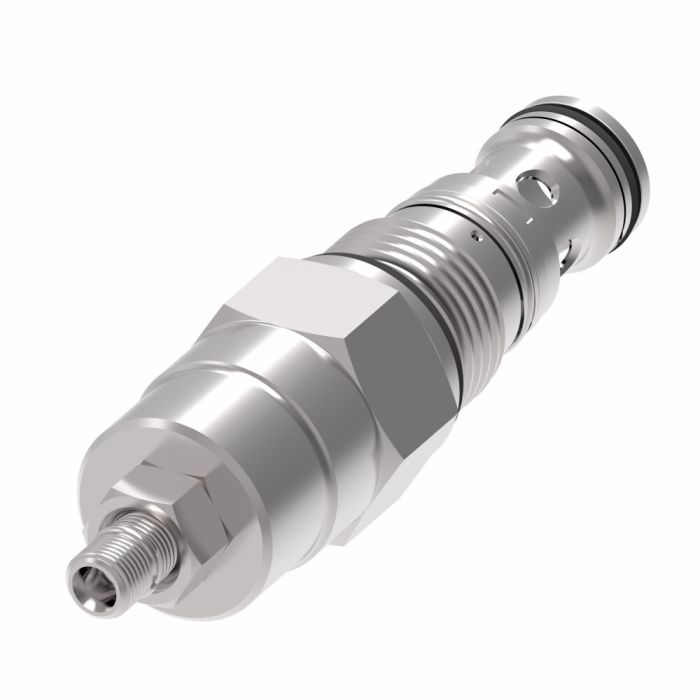

VICKERS CBV2-12-S-0-A-50/-AVALV

Description & Features

Designed for demanding mobile and industrial applications, the Vickers CBV2-12-S-0-A-50/-AVALV is a 3-ported, externally piloted motion control valve built to handle challenging load management requirements. Rated to 350 bar (5,000 psi) with a flow capacity of up to 550 L/min (143 USgpm), it delivers stable performance when controlling moving loads, a critical requirement in harvesters, refuse haulers, and comparable mobile equipment.

This valve conforms to ISO 8643, making it suitable for applications where standardized performance is required. With a flow rate of 114 litres per minute and a design focused on load stability, the CBV2-12 series is well suited to both mobile and stationary industrial circuits where controlled load holding and release are priorities.

SKU: 02-199650

Supplier Part Number (MPN): 02-199650

Specifications

Alternate Part Numbers Alternate Part Number MINO-00569X60108	Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 550 L/min (143 USgpm)\|Excellent stability for moving loads\|ISO8643 Compliant	Flow Rate1 114 litre per minute	ICC SICV Motion Control Valves	Language English	Net Pack Quantity Units EA	Port Size None	Product Width 1.25	Special Features None	Style 3-Ported, Externally Piloted	Sub Brand Vickers	Supplier Part Number 02-199650	Product Weight 0.79 lbs

Product Questions & Answers (2)

Question by: Rick W on May 7, 2025, 8:05 AM

Will this handle the kind of pressure you see in a refuse truck hydraulic system?

Answer by: Customer Support on May 9, 2025, 8:06 AM

Rated to 350 bar (5,000 psi), the CBV2-12 series is built to manage the high pressure demands common in refuse hauling and similar mobile equipment.

Question by: Phil H on Nov 10, 2025, 7:35 PM

Got a refuse hauler that's been giving us grief with load creep on the hoist cylinder. Would this CBV2-12 valve be the right kind of fix for that?

Answer by: Customer Support on Nov 12, 2025, 5:41 PM

Load creep on a hoist circuit is exactly the kind of problem this valve class addresses. The CBV2-12 is an externally piloted motion control valve built specifically for moving load stability, which covers situations where a held load wants to drift or release unevenly. It's rated to 350 bar (5,000 psi) with flow capacity up to 550 L/min, and refuse haulers are actually listed among its intended applications. For a hoist circuit dealing with uncontrolled load movement, this is a well-matched solution.
