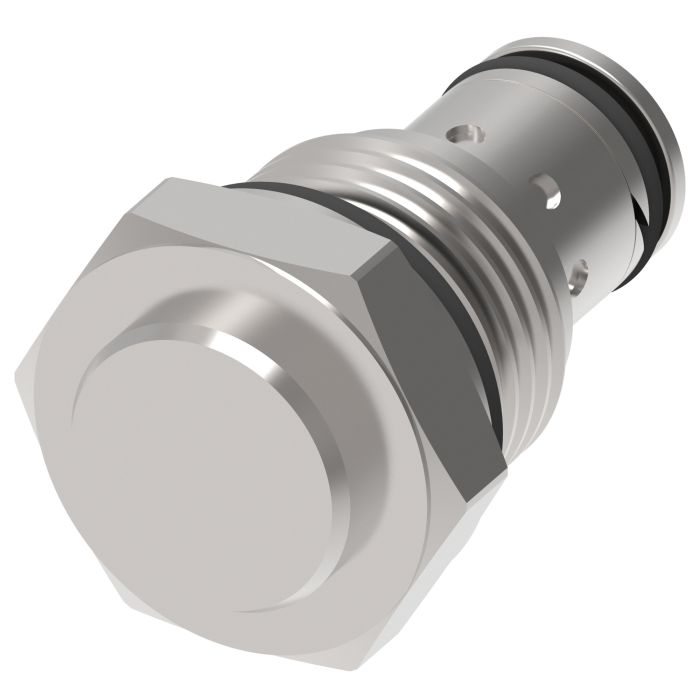

VICKERS CV1-16-P-0-100

Description & Features

Designed for high-demand applications, the Vickers CV1-16-P-0-100 check valve is ideal for use in harvesters, refuse haulers, and both mobile and industrial settings. This poppet-style valve is built to withstand pressures up to 350 bar (5000 psi) and supports a flow rate of 151 liters per minute, ensuring efficient and reliable performance.

Featuring low spring settings, the valve offers enhanced operational efficiency, which is crucial for maintaining productivity in rigorous environments. Manufactured by the trusted Vickers brand, this valve is part of the CV1-16/CV11-16 series, known for its durability and superior functionality in demanding hydraulic systems.

SKU: 02-199683

Supplier Part Number (MPN): 02-199683

Alternate Part Numbers: CV1-16-P-0-100

Specifications

Actuator Type Direct Acting	Dimensions 1.5 in L x 2.26 in W x 1.5 in H	Domestic/Import Import	Language English	Mounting Type Screw-In	Nominal Size #16	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code B	Series CV1-16 Series	Style Poppet

Product Questions & Answers (1)

Question by: Glen W on Oct 4, 2025, 7:14 PM

Got a harvester that's been giving me grief with backflow issues. Would the CV1-16-P-0-100 hold up to that kind of work, and what kind of pressure can it actually handle?

Answer by: Customer Support on Oct 6, 2025, 2:37 PM

Harvesters are one of the listed applications for this valve, so it fits right in that kind of environment. It's rated to 350 bar, which works out to 5000 psi, so it can handle serious pressure demands without breaking a sweat. The poppet-style design keeps things tight against backflow, and the low spring settings help maintain efficiency even when the system is under sustained load.
