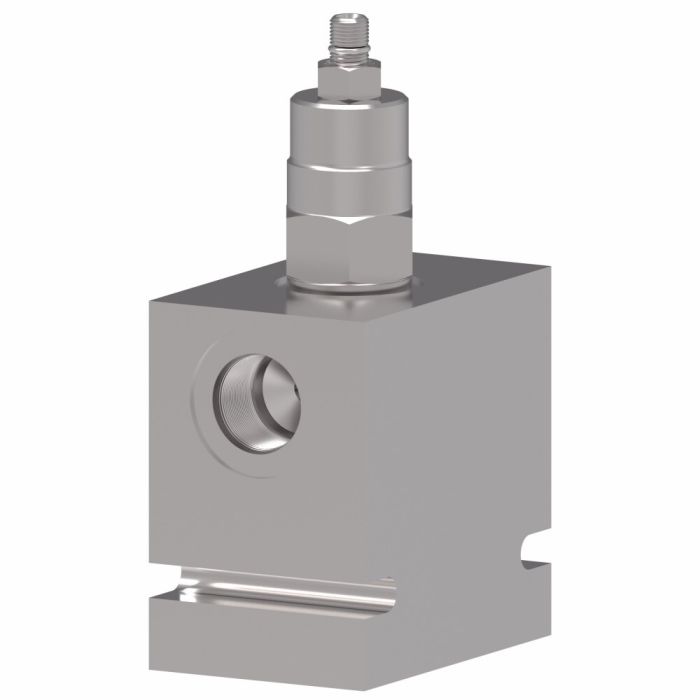

VICKERS CBV2-12-S-IS12T-B-30/-A

Description & Features

Designed for mobile and industrial hydraulic circuits, this 3-ported, externally piloted motion control valve from Eaton Vickers delivers reliable load-holding and controlled movement in demanding applications such as harvesters and refuse haulers. Rated to 350 bar (5,000 psi) with flow capacity up to 550 L/min (143 USgpm), it is built for high-pressure, high-flow service where load stability is a priority.

The VICKERS CBV2-12-S-IS12T-B-30/-A features a 3/4-inch port size and carries an ISO 8643 compliance rating, making it suitable for use in equipment that must meet recognized international standards for motion control. Excellent stability under moving loads is a key characteristic of the Cbv2-12 series, supporting consistent performance in both mobile field equipment and fixed industrial installations.

SKU: 02-199844

Supplier Part Number (MPN): 02-199844

Alternate Part Numbers: CBV212SIS12TB30A

Specifications

Brand Vickers by Danfoss	Actuator Type Pilot Operated	Body Material Steel	Dimensions 3.97 in L x 3.97 in W x 5.24 in H	igs Only With igs	Language English	Number of Ports/Ways 3-Port	Port Type SAE	Seal Material Buna-N	Series CBV2-12 Series	Style Externally Piloted

Similar Products

Model Number	Port Type	Body Material	Dimensions
02-199657	SAE	Aluminum	3.97 in L x 3.97 in W x 5.24 in H
02-199670	Cartridge	Steel	5 in L x 1-1/4 in W x 1-1/4 in H
02-199671	Cartridge	Steel	5 in L x 1-1/4 in W x 1-1/4 in H

Product Questions & Answers (3)

Question by: Rick J on Aug 31, 2025, 6:33 PM

3/4 port size on this thing -- is that gonna work for most standard hydraulic lines runnin on a refuse hauler, or am I lookin at adapters?

Answer by: Customer Support on Sep 2, 2025, 7:03 AM

For most refuse hauler setups running 3/4 inch hydraulic lines, this valve ports right in without needing adapters. The CBV2-12 series is specifically listed for refuse hauler applications, so that port sizing was chosen with that kind of equipment in mind. If your lines are already plumbed to 3/4, you should be in good shape for a direct connection.

Question by: Travis B on Dec 26, 2025, 10:04 AM

Will this fit on my harvester, or is it more for industrial equipment?

Answer by: Customer Support on Dec 27, 2025, 8:26 PM

It's designed for mobile and industrial applications like harvesters and refuse haulers.

Question by: Hank E on Mar 5, 2026, 7:20 PM

got a moving load that likes to creep on me. is this CBV2-12 valve meant to help steady that out?

Answer by: Customer Support on Mar 7, 2026, 6:00 AM

For controlling moving loads, the CBV2-12 series is built as a motion control valve with excellent stability, which helps keep loads from getting away from you during movement.
