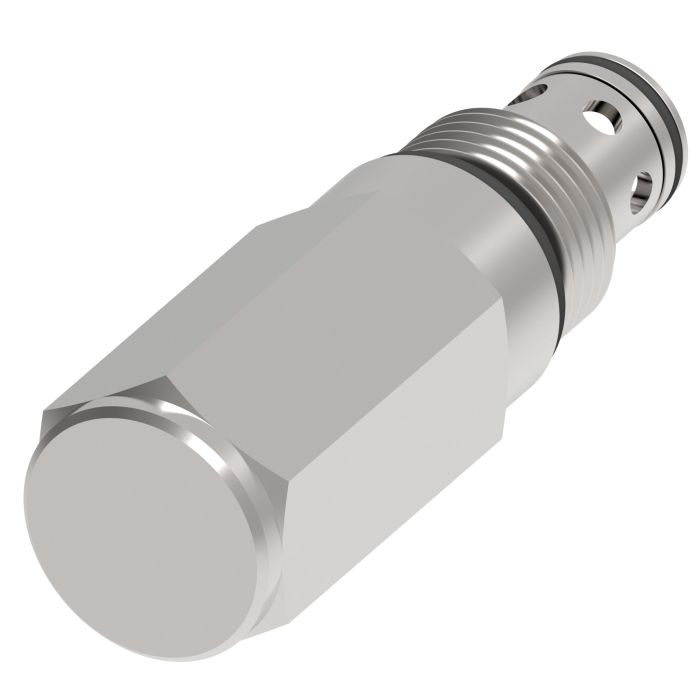

VICKER RELIEF VALVE

Description & Features

The Vickers RELIEF VALVE is part of the RV1-10 series of pressure control valves by Eaton / Danfoss. Well-suited for mobile and industrial applications such as harvesters and refuse haulers. Provides maximum flexibility in a compact, economical, and reliable package.

This poppet style relief valve offers a flow rate of 30 liters per minute and a pressure rating up to 350 bar (5000 psi).

SKU: 02-200006

Supplier Part Number (MPN): 02-200006

Alternate Part Numbers: C1JU58

Specifications

Actuator Type Direct Acting	Adjustment Type Screw	Cavity C-10-2	Dimensions 4.38 in L x 1 in W x 1 in H	Housing Without Housing	Installation Type Screw-In Cartridge	Nominal Size 10	Number of Ports/Ways 2-Port	Port Type Cartridge	Seal Material Buna-N	Series RV1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Roy W on Nov 5, 2025, 4:02 PM

Running a harvester setup and need to know if this valve can hold up to 5000 psi steady. That about the max this thing's rated for?

Answer by: Customer Support on Nov 7, 2025, 2:05 PM

350 bar is the pressure ceiling on this valve, which works out to right at 5000 psi. For harvester hydraulics that are pushing up against that range, it fits the bill. The RV1-10 series was built with mobile equipment like that in mind, so it's not just rated for it on paper, it's the kind of application this poppet style design was put to work in.

Question by: Ronnie J on Oct 6, 2025, 11:42 AM

So this is a poppet style relief valve? Does that mean it's good for quick response times in a hydraulic system?

Answer by: Customer Support on Oct 8, 2025, 10:05 AM

Yes, it's a poppet style. This design is known for its quick response to pressure changes, which is crucial in hydraulic systems where you need precise and immediate pressure control.
