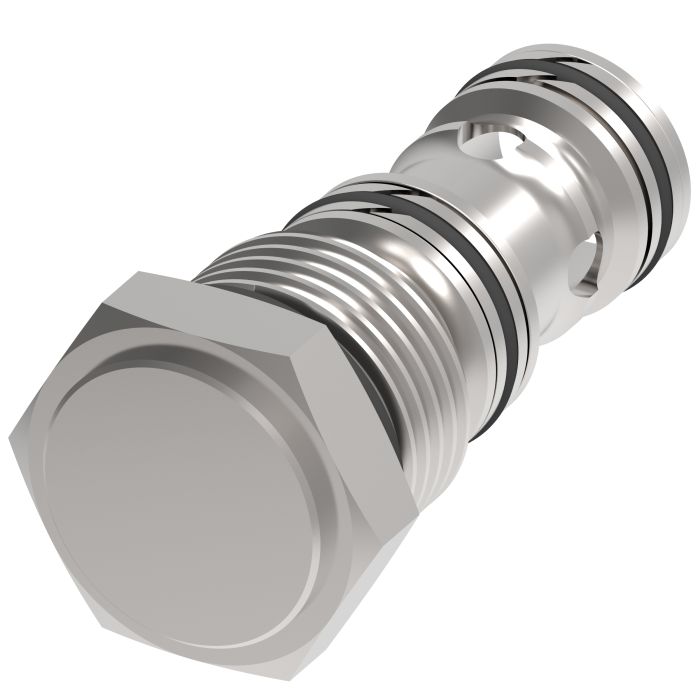

VICKERS POC1-10V-F-0-005

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers POC1-10V-F-0-005 is a poppet-style check valve rated to 350 bar (5,000 psi) with a flow capacity up to 227 L/min (60 USgpm). Its low spring settings support high operational efficiency across a wide range of system pressures, making it well suited for harvesters, refuse haulers, and similar mobile equipment.

Part of the Vickers by Danfoss/Eaton POC1-10 series, this check valve is built for reliable directional flow control in both mobile and stationary industrial applications. With a nominal flow rate of 57 litres per minute and a compact poppet construction, it fits where consistent, low-restriction flow control is required.

SKU: 02-200385

Supplier Part Number (MPN): 02-200385

Specifications

Actuator Type
Pilot Operated
Cavity
C-10-3
Dimensions
2.17 in L x 1 in W x 1 in H
Domestic/Import
Import
Housing
Without Housing
Language
English
Mounting Type
Screw-In Cartridge
Nominal Size
10
Number of Ports/Ways
3-Port
Pilot Piston Seal
Without Pilot Piston Seal
Pilot Ratio
3:1
Port Type
Cartridge
Seal Material
FKM
Series
POC1-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Jean J on Jan 26, 2026, 4:25 PM
Got a harvester sitting idle cause the check valve went out on it, will this POC1-10V-F-0-005 hold up to 5,000 psi? Need to know before I order.
Answer by: Customer Support on Jan 27, 2026, 5:32 PM
Yeah, 5,000 psi is exactly what this valve is rated for. It handles up to 350 bar, which works out to that same figure, so you're sitting right at the rated limit. Flow capacity goes up to 227 litres per minute, with a nominal flow rate of 57 litres per minute, and the poppet-style construction keeps restriction low. It's built for mobile equipment like harvesters, so the duty demands on those machines were part of the design consideration from the start.
Question by: Frank C on Feb 5, 2026, 7:48 PM
I'm looking for a check valve for a harvester. Would this one be suitable?
Answer by: Customer Support on Feb 7, 2026, 4:30 PM
This Vickers POC1-10V-F-0-005 check valve is designed for demanding mobile hydraulic circuits, which includes equipment like harvesters. It can handle up to 227 L/min (60 USgpm), so just make sure that aligns with your system's flow requirements.
