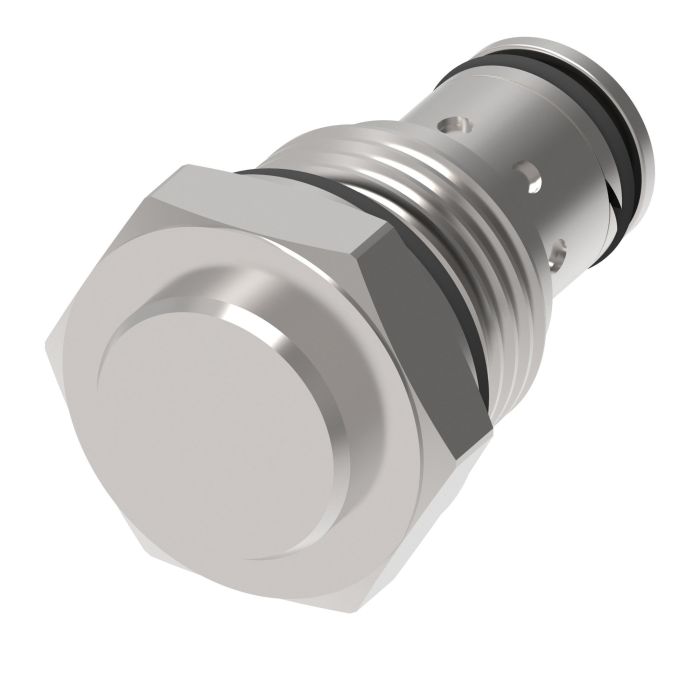

VICKERS CV11-10-P-0-100

Description & Features

The VICKERS CV11-10-P-0-100 check valve is part of the CV11-10 series from Vickers by Danfoss / Eaton. These poppet-style check valves are suitable for mobile and industrial applications, including use in harvesters and refuse haulers.

This valve features a maximum pressure of 350 bar (5000 psi) and a maximum flow rate of 227 liters per minute (60 US gpm). It provides high operational efficiency and features low spring settings, with a flow rate of 114 liters per minute.

SKU: 02-200414

Supplier Part Number (MPN): 02-200414

Specifications

Actuator Type Direct Acting	Dimensions 1 in L x 1.56 in W x 1 in H	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Series CV11-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Clint T on Mar 2, 2026, 12:46 PM

Will this handle hydraulic fluid in a log splitter?

Answer by: Customer Support on Mar 4, 2026, 12:09 PM

This Vickers check valve is rated for a maximum pressure of 350 bar, which is about 5000 psi, so if your log splitter operates within that range, it should be suitable. It's also good for flow rates up to 227 liters per minute.

Question by: Brenda C on Aug 4, 2025, 7:31 PM

running a couple of these on a refuse hauler setup and just want to make sure i got the right one -- what's the max pressure this valve handles?

Answer by: Customer Support on Aug 5, 2025, 8:16 PM

Rated for 350 bar, which works out to 5000 psi. For a refuse hauler application that's a solid pressure ceiling, and it falls right in line with what this CV11-10 series was built for. You should be in good shape there.
