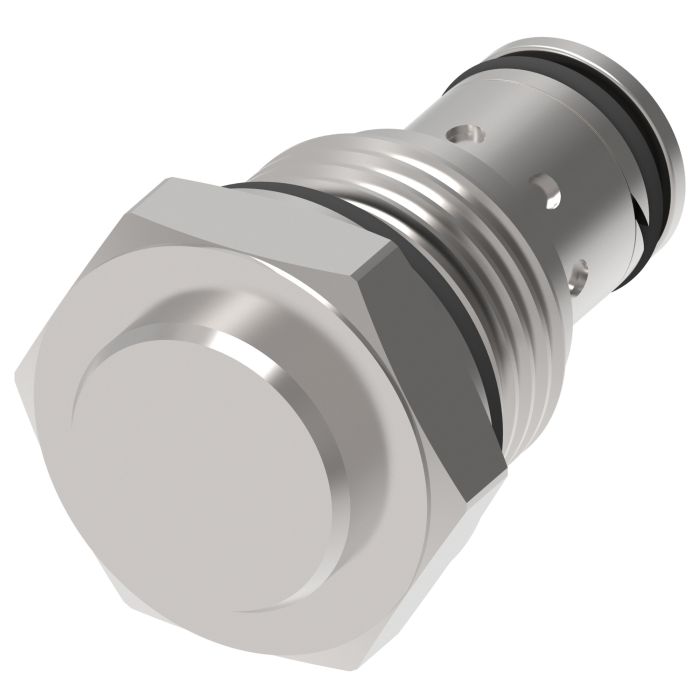

VICKERS CV13-10-P-0-10

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers CV13-10-P-0-10 is a poppet-style check valve rated for pressures up to 350 bar (5,000 psi) with a flow capacity of 76 litres per minute. Its poppet construction supports reliable non-return flow control across a broad range of duty cycles.

Well-suited for harvesters, refuse haulers, and general industrial equipment, this check valve features low spring settings that contribute to high operational efficiency with minimal pressure drop. It is part of the Vickers by Danfoss/Eaton CV3-10/CV13-10 series, a proven line of SICV check valves built for both mobile and stationary hydraulic systems.

SKU: 02-200426

Supplier Part Number (MPN): 02-200426

Specifications

Actuator Type Direct Acting	Dimensions 1 in L x 1.56 in W x 1 in H	Domestic/Import Import	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code A	Series CV13-10 Series	Style Poppet

Product Questions & Answers (1)

Question by: Billy H on Aug 8, 2025, 11:20 AM

runs about 76 liters a minute, that right? got a circuit on a refuse hauler that needs somewhere around that range and just want to make sure this one's gonna hold up before i order

Answer by: Customer Support on Aug 9, 2025, 6:59 PM

76 litres per minute is the rated flow for this valve, so a refuse hauler application is right in the wheelhouse for it. The CV13-10-P-0-10 is actually called out specifically for that kind of equipment, along with harvesters and general industrial use. Poppet-style construction keeps the flow control reliable across a lot of duty cycles, and the low spring settings help keep pressure drop from being a problem at that flow range.
