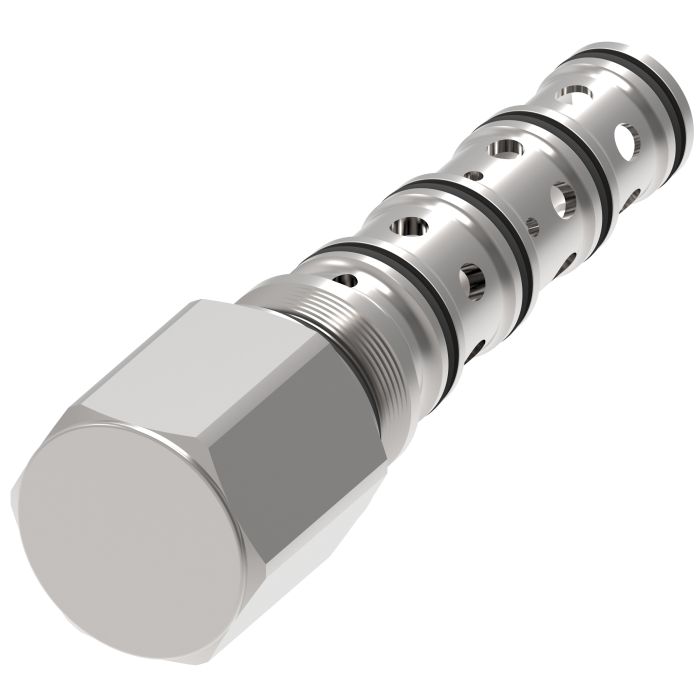

VICKERS-PTS9-10N-0000-100-00-A

Ask A Question

Description & Features

Designed for demanding mobile and industrial applications, the Vickers PTS9-10N-0000-100-00-A is a spool-style directional control valve rated for up to 350 bar (5,000 psi) with a flow rate of 38 litres per minute. Its compact, economical construction makes it well-suited for use in harvesters, refuse haulers, and a broad range of mobile hydraulic systems where space is at a premium.

Part of the Vickers by Danfoss/Eaton PTS9-10 Series, this valve offers maximum layout flexibility without sacrificing performance. The spool configuration supports reliable directional control, and the series overall is rated to handle flows up to 265 L/min (70 USgpm) across compatible configurations. No special features are noted for this specific variant.

SKU: 02-201243

Supplier Part Number (MPN): 02-201243

Specifications

Actuator Type
Hydraulic, Pilot Operated
Cavity
C-10-5S
Detent Option
Without Detent
Dimensions
3.88 in L x 1 in W x 1 in H
Domestic/Import
Import
Function
Pilot to Shift Valve
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
5-Port, 3-Way
Number of Positions
2
Port Type
Cartridge
Seal Material
Buna-N
Series
PTS9-10 Series
Style
Spool

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy M on Nov 10, 2025, 8:23 AM
Got a harvester that's been eating valves all season. This a spool-type unit or one of them poppet styles?
Answer by: Customer Support on Nov 11, 2025, 8:52 AM
Spool-style, which is what most harvester circuits are built around. It handles directional control and is rated to 350 bar, so 5,000 psi, which covers the pressure demands you'd expect in that kind of equipment. Flow on this specific variant is 38 litres per minute, and the PTS9-10 series it belongs to can handle up to 265 L/min across compatible configurations, so there's room to grow if your system calls for it.
