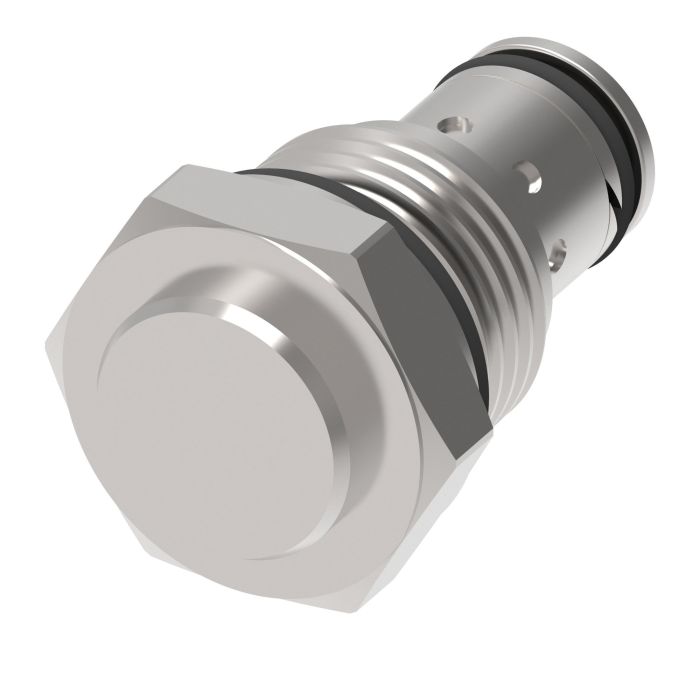

VICKERS CV610NP00000304802

Description & Features

This Vickers CV6-10 series check valve by Danfoss / Eaton is suitable for mobile and industrial applications, including use in harvesters and refuse haulers.

The VICKERS CV610NP00000304802 features high operational efficiency and low spring settings. It handles a flow rate of 76 liters per minute and supports a maximum pressure of 350 bar (5000 psi) and 227 L/min (60 USgpm).

SKU: 02-201367

Supplier Part Number (MPN): 02-201367

Specifications

Actuator Type Direct Acting	Cavity C-10-2	Dimensions 1.56 in L x 1 in W x 1 in H	Domestic/Import Import	Housing Without Housing	Installation Type Screw-In Cartridge	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 2-Port	Pilot Piston Seal Without Pilot Piston Seal	Port Type Cartridge	Seal Material Buna-N	Series CV6-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Shane H on Sep 25, 2025, 9:53 AM

What kind of machines would this check valve typically go on?

Answer by: Customer Support on Sep 26, 2025, 7:47 PM

Typically, this Vickers CV6-10 series check valve is used in mobile and industrial equipment like harvesters and refuse haulers.

Question by: Shawn J on Mar 9, 2026, 5:02 PM

what kinda flow rate does this check valve handle, and is 76 L/min the max or just typical operating range?

Answer by: Customer Support on Mar 11, 2026, 8:27 AM

76 liters per minute is the listed flow rate for this valve. The max system flow it's rated to support goes up to 227 L/min (60 USgpm), with a maximum pressure ceiling of 350 bar or 5000 psi. So the 76 L/min figure reflects the valve's own flow capacity, while the broader ratings speak to what the system around it can handle.
