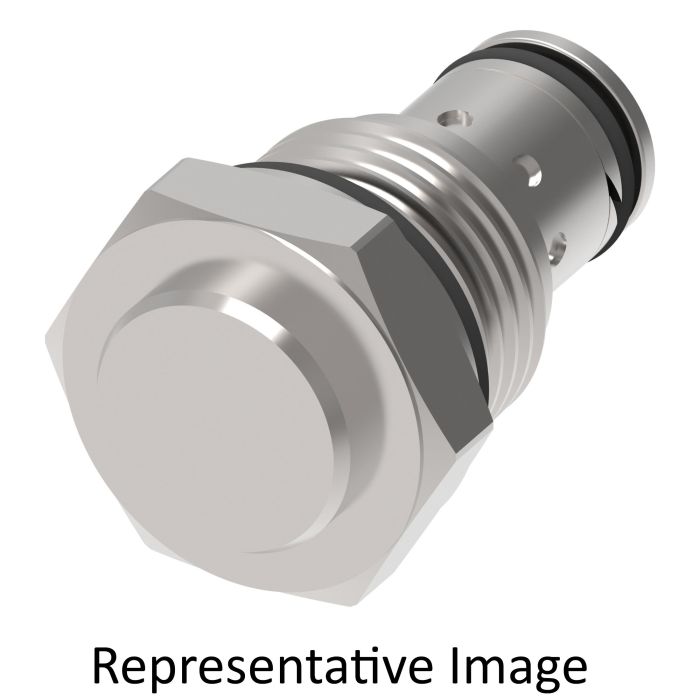

main product photo

VICKERS CV11-16-P-0000-005

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers CV11-16-P-0000-005 is a poppet-style check valve rated for pressures up to 350 bar (5,000 psi) with a flow capacity of 151 litres per minute. Its low spring settings support high operational efficiency across a wide range of duty cycles.

Well-suited for use in harvesters, refuse haulers, and general industrial hydraulic systems, this Eaton Vickers unit belongs to the CV1-16/CV11-16 series of screw-in cartridge check valves. The poppet construction provides reliable, leak-resistant sealing and consistent performance under variable load conditions common to mobile equipment.

SKU: 02-201476

Supplier Part Number (MPN): 02-201476

Specifications

Actuator Type
Direct Acting
Dimensions
2.26 in L x 1.5 in W x 1.5 in H
Domestic/Import
Import
igs Only
With igs
Installation Type
Screw-In Cartridge
Language
English
Mounting Type
Screw-In
Nominal Size
#16
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Segment Code
B
Series
CV1-16 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Kirk B on Jan 30, 2026, 7:27 AM
What kind of applications is this check valve good for? I work on some pretty rough equipment.
Answer by: Customer Support on Jan 31, 2026, 9:17 AM
These Vickers CV11-16 series check valves are made for harvesters, refuse trucks, and other mobile or industrial applications. They're built to handle some tough environments.
Question by: Wade K on Oct 3, 2025, 4:34 PM
runs up to 60 gpm, but what's the actual rated flow for this specific check valve?
Answer by: Customer Support on Oct 5, 2025, 8:27 AM
Listed flow rate for this valve comes in at 151 liters per minute, which works out to right around 40 USgpm under standard conditions. The series as a whole is rated up to 227 L/min (60 USgpm), so this particular CV11-16-P-0000-005 sits within that range but is not the top-flow variant. If your system is pulling closer to that 60 gpm ceiling, you'd want to confirm you're spec'd to the right unit in the CV11-16 lineup.
