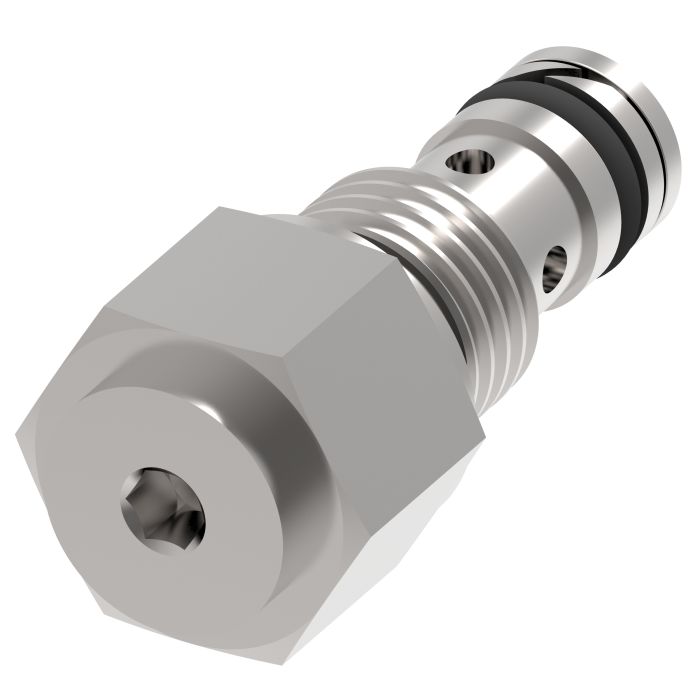

VICKERS CV3-4-P-000-05-01

Description & Features

The Vickers CV3-4-P-000-05-01 check valve is designed for mobile and industrial applications such as harvesters and refuse haulers. This poppet style check valve offers high operational efficiency and low spring settings.

This Vickers CV3-4 Series Check Valve features a 350 bar (5000 psi) pressure rating and a 227 L/min (60 USgpm) flow rate.

SKU: 02-201631

Supplier Part Number (MPN): 02-201631

Specifications

Actuator Type Direct Acting	Dimensions 1.36 in L x 0.56 in W x 0.56 in H	Domestic/Import Import	Installation Type Screw-In Cartridge	Language English	Mounting Type Screw-In	Nominal Size #04	Number of Ports/Ways 2-Port	Seal Material Buna-N	Segment Code A	Series CV3-4 Series	Style Poppet

Product Questions & Answers (2)

Question by: Shane W on Apr 1, 2026, 7:03 PM

Reckon this would hold up okay on a rig runnin' pretty much all day, every day?

Answer by: Customer Support on Apr 3, 2026, 4:18 PM

This Vickers CV3-4 series check valve is designed for demanding mobile and industrial applications. It's built to handle continuous operation with a robust 350 bar (5000 psi) pressure rating.

Question by: Troy R on Aug 9, 2025, 1:53 PM

Running a refuse hauler and need a check valve that can hold up to the pressure we throw at it. This CV3-4 rated for anything serious?

Answer by: Customer Support on Aug 11, 2025, 1:34 PM

Rated to 350 bar, which works out to 5000 psi, so it can handle the kind of demands a refuse hauler puts on a hydraulic system without breaking a sweat. Flow capacity tops out at 227 liters per minute, or 60 gallons per minute on the US side. The poppet style construction keeps operational efficiency high, so you're not bleeding off pressure where you don't want to.
