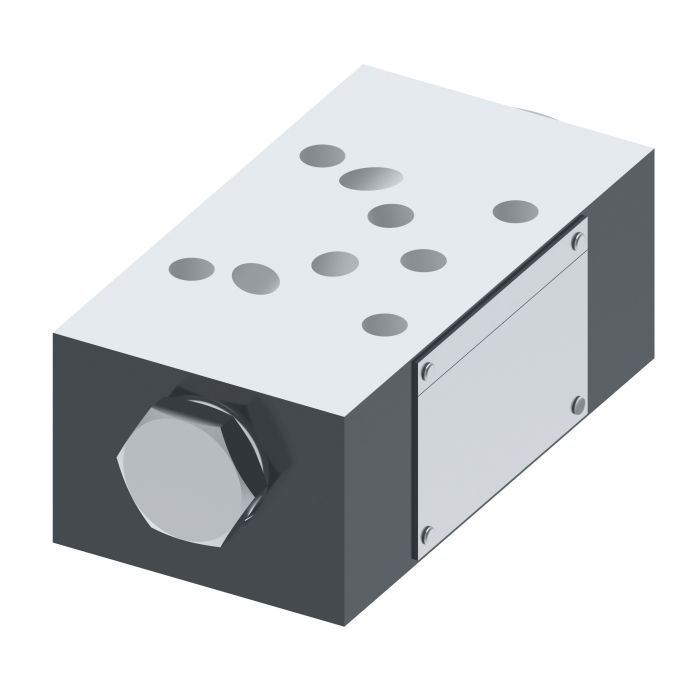

VICKERS DGMPC 5 DABN DBAN 30

Description & Features

Designed for machine tool and a broad range of industrial applications, the Vickers DGMPC 5 DABN DBAN 30 is a SystemStak directional control valve engineered to integrate cleanly into stacked valve assemblies. With a maximum flow rate of 120 litres per minute, it handles demanding hydraulic circuits while helping to reduce installation costs by eliminating the need for separate manifolds and external fittings.

Buna-N seals provide reliable resistance to common hydraulic fluids, and the valve's design actively limits external leakage while boosting resistance to contamination, both important considerations in production environments where unplanned downtime carries real cost. Manufactured under the Vickers brand, now part of the Danfoss/Eaton portfolio, this valve reflects a well-established design standard within the SystemStak product family.

SKU: 02-300617

Supplier Part Number (MPN): 02-300617

Alternate Part Numbers: C1JU63

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Check Location Line A	Check Location Dual Line B	Decompression Feature Decompression Feature	Design Series 30 Series	Dimensions 5.82 in L x 2.74 in W x 1.97 in H	Domestic/Import Domestic	Function Check in Line A, Pilot Operated From Line B	Function Dual Check in Line B, Pilot Operated From Line A	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #5	Performance Standard	Port Operated Upon A Cylinder Port	Seal Material FKM	Segment Code C	Series DGMPC-5 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Ronnie P on Oct 26, 2025, 9:11 PM

flow rate on this one is listed at 120 litres per minute -- that enough for most standard machine tool circuits or is it on the lower end?

Answer by: Customer Support on Oct 28, 2025, 3:18 PM

For most machine tool setups, 120 litres per minute is plenty. That range covers a wide slice of industrial hydraulic work without issue. Where you'd start bumping up against limits is in high-demand multi-actuator circuits running simultaneously at full load, but for a typical machine tool circuit, you're well within a comfortable operating range.

Question by: Neal E on Aug 29, 2025, 5:10 PM

Reckon this'll drop right into a SystemStak setup without much fuss?

Answer by: Customer Support on Aug 30, 2025, 8:40 PM

Designed for SystemStak assemblies, this directional control valve should integrate cleanly, helping cut down on extra parts and labor.
