VICKERS CPF1S-12-F-W-20

Description & Features

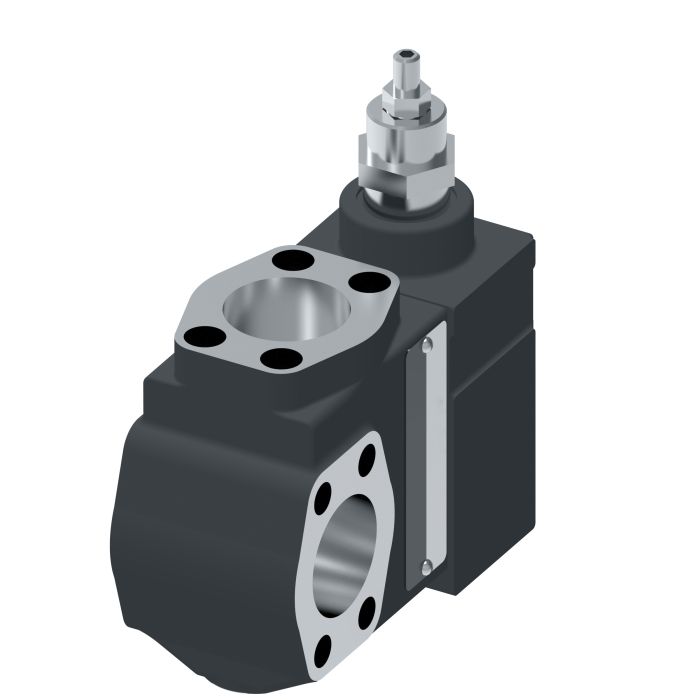

The Eaton Vickers CPF1S-12-F-W-20 is a pressure control valve designed for applications requiring adjustable pressure relief or regulation. It effectively limits pressure in a hydraulic circuit to a desired maximum.

Features include a plug-and-play design and moisture resistance. This Vickers valve offers high performance and reliable operation.

It offers a flow rate of 800 liters per minute and utilizes Buna-N seals.

SKU: 02-301101

Supplier Part Number (MPN): 02-301101

Alternate Part Numbers: C1FV38

Specifications

Actuator Type Pilot Operated	Body Material Iron	Design 20 Series	Dimensions 7.49 in L x 3.15 in W x 7.09 in H	Domestic/Import Domestic	Nominal Size #12	Number of Ports/Ways 2-Port	Number of Stages 2	Seal Material Buna-N	Segment Code B	Series CPF1-12 Series	Valve Mount Type Flange-Mounted

Product Questions & Answers (2)

Question by: Gary W on May 30, 2025, 5:58 PM

got a circuit that keeps spiking pressure, is this valve the kind that’ll cap it where i set it?

Answer by: Customer Support on Jun 1, 2025, 6:18 AM

In a hydraulic circuit where you need to keep pressure from climbing past a set point, this CPF1S-12 pressure control valve is used as an adjustable relief or regulating valve to limit the system to a desired maximum.

Question by: Daryl B on May 5, 2025, 2:47 PM

what's the max flow this valve can handle? got a circuit that pushes pretty hard and need to know if it'll keep up

Answer by: Customer Support on May 7, 2025, 7:10 AM

Rated for 800 litres per minute, so it has plenty of headroom for high-demand circuits. That flow capacity puts it in the range where most industrial hydraulic systems won't come close to pushing its limits under normal operation.
