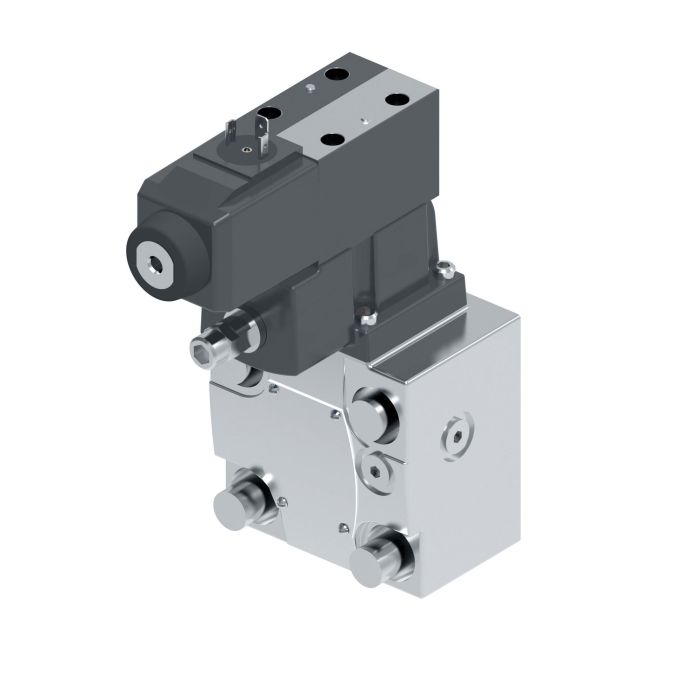

Vickers CS5 060A F M U B5

Ask A Question

Description & Features

Designed for applications requiring adjustable pressure relief, the Vickers CS5 060A F M U B5 is a high-performance pressure control valve that limits hydraulic circuit pressure to a desired maximum. Its plug-and-play design ensures easy integration, while moisture resistance enhances durability. With a flow rate capacity of 227 liters per minute, this valve is ideal for various industrial settings that demand reliable pressure regulation.

Constructed with Buna-N seal material, the valve offers excellent compatibility with a range of hydraulic fluids. The Vickers brand, known for quality and innovation, ensures that this product delivers consistent performance under demanding conditions. Suitable for use in industrial environments, it provides a dependable solution for maintaining optimal system pressure.

SKU: 02-304392

Supplier Part Number (MPN): 02-304392

Specifications

Actuator Type
Pilot Operated, Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
100 Series
Dimensions
5.77 in L x 3.28 in W x 9.54 in H
Domestic/Import
Domestic
End Type
SAE
Gauge Port Thread
16 UNF-2B
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Nominal Size
10
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Segment Code
C
Series
CS5-06 Series
Spring Arrangement
Spring Offset
Valve Mount Type
1-5/8-12 UNF-2B Straight Thread
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ralph L on Jan 4, 2026, 12:34 PM
flow rate on this one listed at 227 liters per minute -- that enough to handle a mid-size industrial press circuit without the valve becoming a bottleneck?
Answer by: Customer Support on Jan 6, 2026, 6:09 AM
For most mid-size press circuits, 227 liters per minute gives you solid headroom. That flow capacity puts it well within range for industrial applications where you need consistent pressure relief without the valve choking the system. As long as your circuit demand stays under that threshold, you shouldn't see any restriction issues on the pressure control side.
