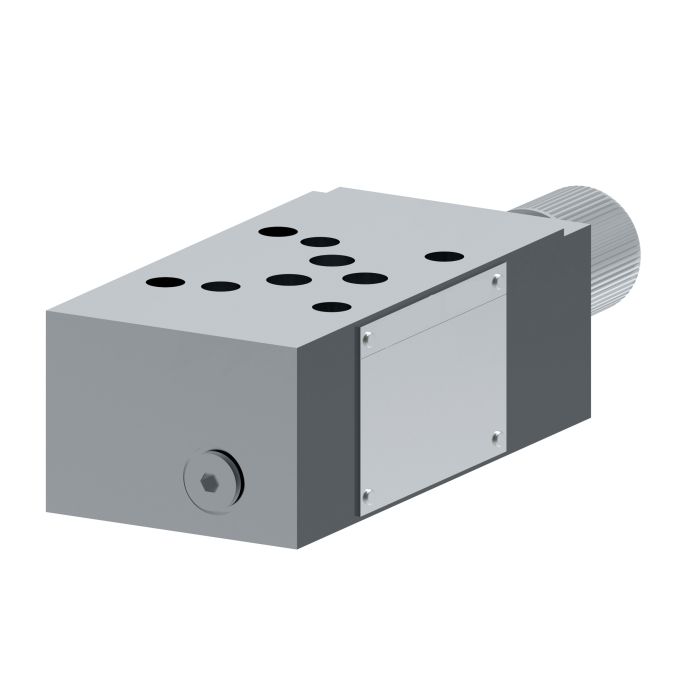

main product photo

VICKERS DGMC 5 BT GH S 30

Ask A Question

Description & Features

This Vickers DGMC 5 BT GH S 30 directional control valve is part of the Vickers SystemStak valve design and is suitable for applications such as die casting, foundry work, machine tools, and marine/offshore environments.

Featuring a Buna-N seal material, this valve is designed to reduce installation costs, eliminate external leakage, and boost resistance to contamination. It has a flow rate of 120 liters per minute and a product width of 2.82 inches.

SKU: 02-304395

Supplier Part Number (MPN): 02-304395

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Knob
Body Material
Iron
Connection Type
SAE
Design
30 Series
Dimensions
7.79 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
End Type
SAE
External Drain
Without External Drain
Gauge Port Thread
SAE 4 O-ring Boss Port
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
Tank Port
Port Operated Upon
B Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Marvin W on Dec 27, 2025, 10:01 AM
What kind of environments is this valve actually built for? Got a marine application and trying to figure out if it'll hold up.
Answer by: Customer Support on Dec 29, 2025, 6:01 AM
Marine and offshore use is listed right alongside die casting, foundry work, machine tools, and press applications for this valve. The Buna-N seal material helps cut down on external leakage and holds up better against contamination, which matters a lot in wet or harsh environments. At 120 liters per minute flow rate, it fits solidly into demanding industrial setups, not just light-duty work.
Question by: Denise Y on Apr 26, 2025, 5:45 PM
What's the deal with SystemStak? Is that like, a special kind of valve setup or somethin'?
Answer by: Customer Support on Apr 28, 2025, 11:49 AM
SystemStak is Vickers' design that helps cut down on installation costs and potential leaks, while also keeping things cleaner and less likely to get gunked up by contamination.
