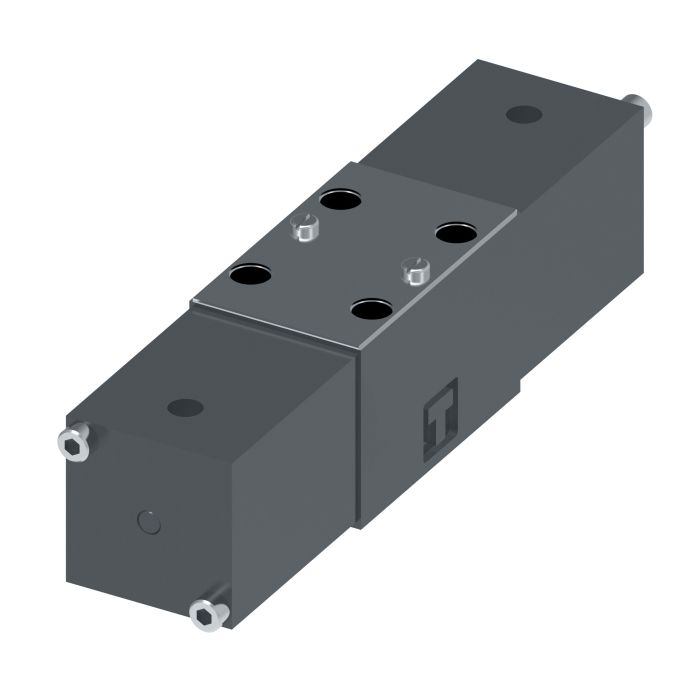

VICKERS DG18V32NB60

Description & Features

Designed for three- or four-way directional flow control, the Vickers DG18V32NB60 is a single-stage directional control valve rated for flow up to 75 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media, and the valve mounts on industry-standard surfaces for straightforward integration into existing hydraulic circuits.

This valve is suited to demanding industrial environments including machine tool, press, primary metal processing, die casting and foundry, marine and offshore, turbine control, and test equipment applications. The DG18V-3 series covers a wide range of configurations, making it a flexible choice where directional control requirements vary across different circuit designs.

SKU: 02-304680

Supplier Part Number (MPN): 02-304680

Specifications

Actuator Type Air, Solenoid	Design 60 Series	Dimensions 5.77 in L x 1.81 in W x 1.96 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Language English	Manual Override Operator End	Media Petroleum Oil	Number of Stages 1	Performance Standard-Performance	Pilot Source Thread 1/8 in BSP	Seal Material FKM	Series DG18V-3 60 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement No Spring Detented	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Duane D on Jan 5, 2026, 1:43 PM

flow rate on this one is listed at 75 litres per minute -- is that enough for press and die casting work or should I be looking at something bigger?

Answer by: Customer Support on Jan 7, 2026, 6:09 AM

For press and die casting applications, 75 litres per minute is a solid working capacity and falls right in line with what those environments typically demand at the circuit level. The DG18V32NB60 is built with exactly those use cases in mind, so you're not forcing it outside its intended range. That said, your specific system requirements determine whether it's sized right. If your circuit peaks consistently near or above that threshold, you'd want to size up. But for a good portion of press and die casting setups, this flow rating handles the load without issue.
