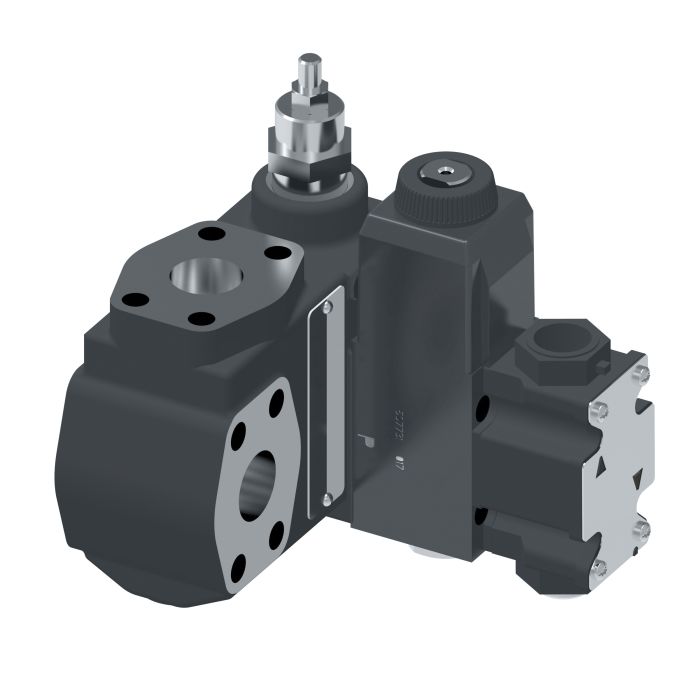

main product photo

Vickers CPF2S 12 F W 3S M

Ask A Question

Description & Features

This Vickers CPF2S 12 F W 3S M pressure control valve is designed for applications requiring an adjustable pressure relief or regulating valve to limit the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve features a plug-and-play design and moisture resistance. It can handle a flow rate of up to 800 liters per minute and has a Buna-N seal material. With a width of 6.5 inches and a wattage of 30, it offers high-performance features for demanding industrial applications.

SKU: 02-308970

Supplier Part Number (MPN): 02-308970

Specifications

Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
20 Series
Dimensions
7.55 in L x 6.5 in W x 7.09 in H
Domestic/Import
Domestic
Drain
Internal
Electrical Connection
1/2 in NPT Housing Flying Leads
End Type
SAE
Gauge Port Thread
1/4 in BSP
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CPF2S-12 Series
Valve Mount Type
Flange-Mounted
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne S on Sep 6, 2025, 5:18 PM
Is this valve okay to use with a system that uses a different kind of fluid besides Buna-N?
Answer by: Customer Support on Sep 7, 2025, 9:00 PM
Designed as a pressure control valve, the Vickers CPF2S 12 F W 3S M is equipped with Buna-N seals, which are compatible with many common hydraulic fluids, but you'll want to verify the specific fluid compatibility to ensure optimal performance and prevent seal damage.
Question by: Freddie H on Apr 15, 2025, 7:06 AM
flow rate on this thing goes up to 800 liters per minute -- that right for a pressure control valve this size?
Answer by: Customer Support on Apr 17, 2025, 6:28 AM
Yeah, 800 liters per minute is the rated flow capacity on this valve. For a CPF2S series unit, that's a solid ceiling for most industrial hydraulic circuits where you need adjustable pressure relief or regulation. It's built to handle demanding load conditions without being undersized for high-volume systems.
