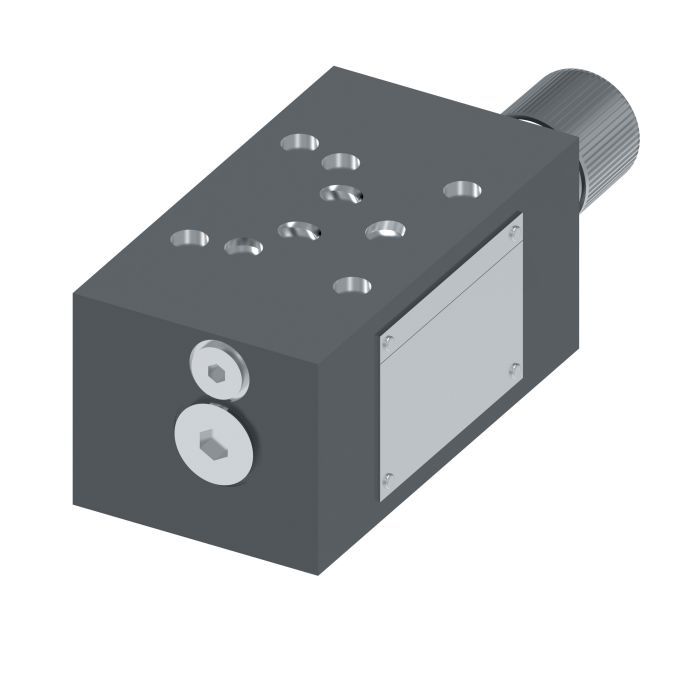

main product photo

VICKERS DGMX2 5 PB BH S 30

Ask A Question

Description & Features

The VICKERS DGMX2 5 PB BH S 30 is a system stak valve designed to reduce installation costs and eliminate external leakage. Its robust construction also boosts resistance to contamination, ensuring reliable performance in demanding hydraulic applications.

This Vickers valve is suitable for a wide range of applications, including die casting and foundry, machine tool, marine/offshore, press, primary metal, plastics, pulp & paper, and test equipment. It features a Buna-N seal material and offers a flow rate of 120 liters per minute.

SKU: 02-309006

Supplier Part Number (MPN): 02-309006

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Knob Adjuster
Body Material
Iron
Connection Type
Female UNF
Design Series
30 Series
Dimensions
9.16 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
Female UNF
External Drain
Without External Drain
Gauge Port Thread
SAE 4 O-ring Boss Port
Language
English
Media
Petroleum Oil
Nominal Size
#5
Number of Ports/Ways
5-Port
Number of Stages
1
Performance
Standard
Pilot Control
Cylinder Port B
Port Operated Upon
P Pressure Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMX2-5 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Kirk K on Mar 9, 2026, 3:18 PM
Is this valve stackable with other Vickers valves?
Answer by: Customer Support on Mar 11, 2026, 1:55 PM
Designed to reduce installation costs and eliminate external leakage, this system stak valve is made to be easily incorporated into existing hydraulic systems.
