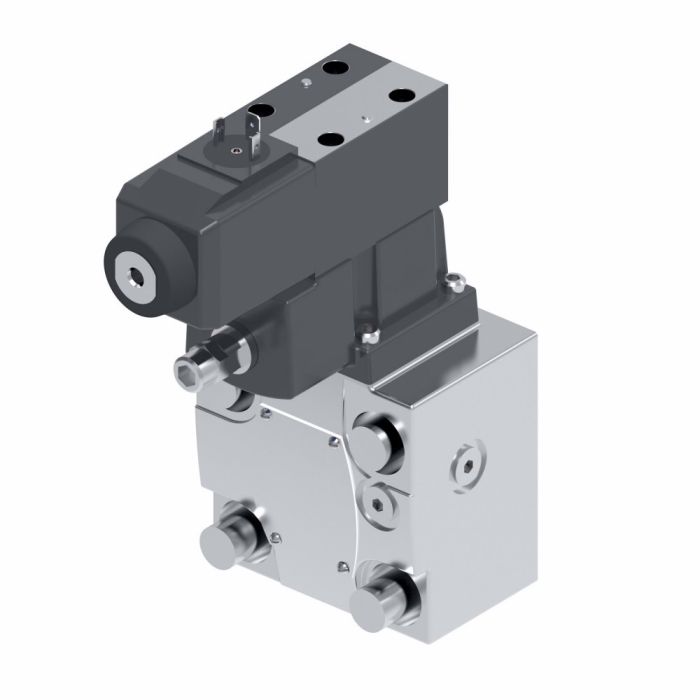

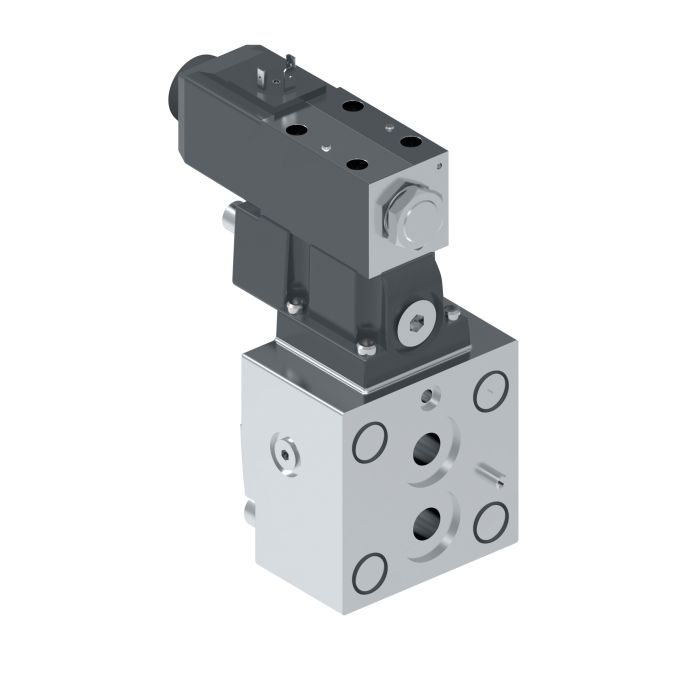

main product photo

Vickers CS5 060A C M U B5

Ask A Question

Description & Features

Designed for hydraulic circuits requiring precise pressure management, the Vickers CS5 060A C M U B5 is a pressure control valve built for applications where an adjustable relief or regulating valve is needed to limit system pressure to a defined maximum. It handles flow rates up to 227 litres per minute, making it well suited to medium-to-high-flow industrial hydraulic systems.

Constructed with Buna-N seals for reliable fluid compatibility, this valve features a plug-and-play design that simplifies installation and replacement. Moisture-resistant construction supports dependable performance in demanding environments. Manufactured under the Vickers brand by Danfoss/Eaton, it belongs to the CS5-06 series of high-performance pressure valves.

SKU: 02-309210

Supplier Part Number (MPN): 02-309210

Specifications

Actuator Type
Pilot Operated, Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Connection Type
SAE
Design
100 Series
Dimensions
7.87 in L x 3.28 in W x 9.54 in H
Domestic/Import
Domestic
End Type
SAE
Gauge Port Thread
16 UNF-2B
Hi-Vent Spring
Without Hi-Vent Spring
Indicator Light
Without Indicator Light
Media
Petroleum Oil
Nominal Size
#06
Number of Stages
2
Performance
Standard
Seal Material
Buna-N
Series
CS5-06 Series
Spring Arrangement
Spring Offset
Valve Mount Type
1-5/8-12 UNF-2B Straight Thread
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lynn M on Apr 12, 2025, 2:41 PM
flow rate on this one is listed at 227 litres per minute, is that enough for a medium-duty industrial setup or is this more of a high-end system valve?
Answer by: Customer Support on Apr 14, 2025, 6:13 AM
For most medium-to-high-flow industrial hydraulic systems, 227 litres per minute puts this valve right in the sweet spot. If your circuit falls somewhere in that range and you need adjustable pressure relief or regulation to cap system pressure at a defined maximum, this fits the bill. It's not a low-flow valve by any stretch, so lighter-duty or compact systems would likely be over-served by it.
