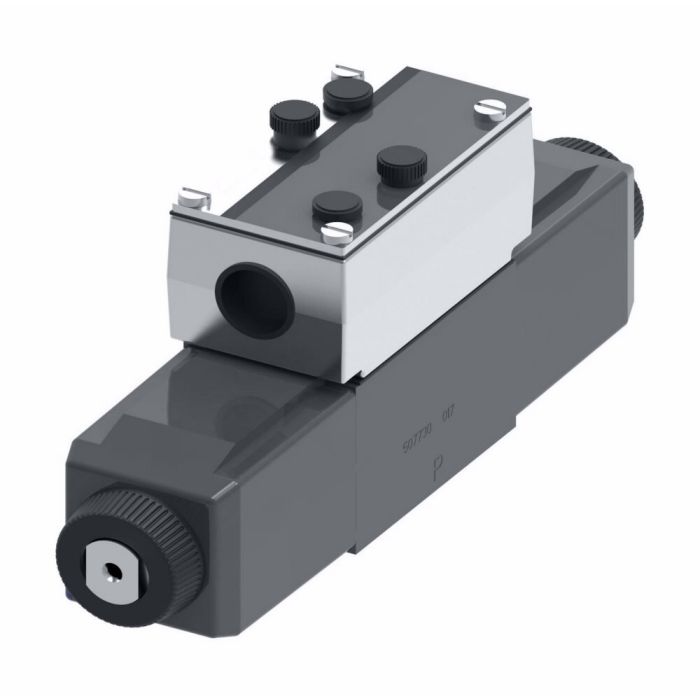

VICKERS DG4V-3S-6C-M-FPBW-B5-60-EN466

Ask A Question

Description & Features

The VICKERS DG4V-3S-6C-M-FPBW-B5-60-EN466 directional control valve is suitable for applications such as die casting and foundry work, machine tools, marine and offshore uses, presses, primary metal production, paper mills, test equipment and simulation, and turbine control systems. It is compatible with wind, steam, and water turbines.

This valve has a flow rate of 40 liters per minute. It features Buna-N seals and a top side plug-in connector. It also comes with a new nameplate E-02-309826.

SKU: 02-309835

Supplier Part Number (MPN): 02-309835

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
7.87 in L x 1.88 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
Instaplug Male and Female Receptacle
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DG4V-3 60 Series
Special Features
Double A Top Side Plug-In Feature with Vickers ID
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Larry B on Dec 15, 2025, 9:07 PM
Is this Vickers valve something I can use on a turbine?
Answer by: Customer Support on Dec 17, 2025, 6:06 AM
This directional control valve is indeed suitable for turbine control systems, including wind, steam, and water turbines.
Question by: Larry W on Jul 18, 2025, 1:13 PM
runs at 40 LPM -- is that enough flow for press and die casting work or is this more of a lighter-duty valve?
Answer by: Customer Support on Jul 20, 2025, 7:45 AM
For most press and die casting setups, 40 liters per minute is a pretty standard flow range for a directional control valve at this size class. It's not a high-flow workhorse, but it handles the directional switching side of the circuit, not the volume demands of your cylinders or motors. If your system flow requirements stay within that 40 LPM ceiling, this valve fits right in those applications. Die casting and press use are both listed applications for this unit, so it's well within its intended scope.
