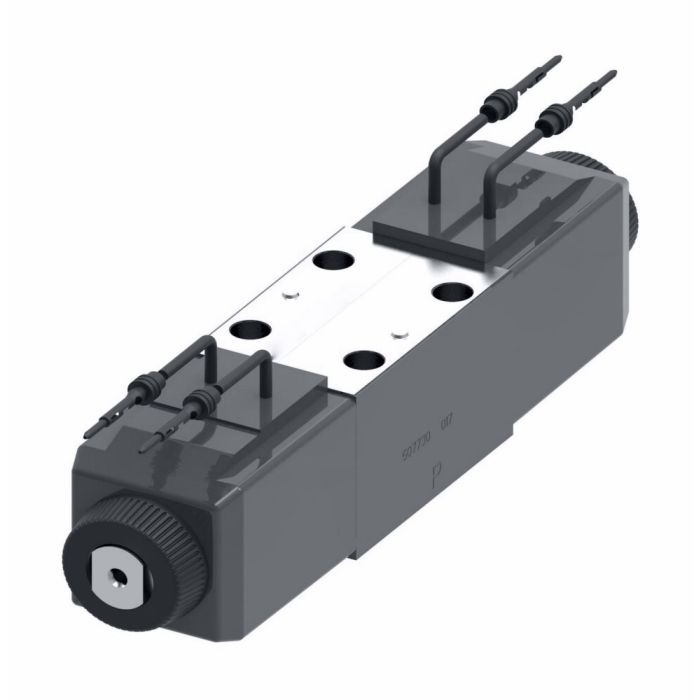

Vickers DG4V 3S 8C V M KU P7 G7 61 EN490

Ask A Question

Description & Features

Ideal for demanding environments, the Vickers DG4V 3S 8C V M KU P7 G7 61 EN490 is a versatile directional control valve designed for use in die casting, marine, and turbine control applications. With a flow rate of 40 liters per minute, this valve provides reliable performance in high-pressure systems up to 3000 psi. Its robust construction features a Buna-N seal, ensuring durability and compatibility with various hydraulic fluids.

This Vickers directional control valve offers flexible installation options with its three- or four-way configuration and is easily mountable on industry-standard surfaces. The valve is specially engineered for the mobile market, using CMX style solenoids and a 17.5mm core tube, making it suitable for replacing high-pressure valves in tank line applications.

SKU: 02-310065

Supplier Part Number (MPN): 02-310065

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
61 Series
Dimensions
8.66 in L x 1.88 in W x 3.42 in H
Domestic/Import
Domestic
Electrical Connection
Packard Connector Pin (Male)
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DG4V-3 61 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Special Features
DG4V-3S-M-*-60-EN490 Special for Mobile Market Inst Drawing 02-305224, 02-309360 Use CMX Style Solenoid, 17.5 mm Core Tube, Release as Option for Mobile Environment, Also to Replace H.P. Valve in 3000 psi Tank Line Applications
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Similar Products

Model Number Flow Rate Dimensions Price Action
VICKERS DG4V38CVMKUP6G761

02-311649

8.66 in L x 1.88 in W x 3.42 in H

VICKERS DG4V3S8CVMKUP6G761EN490

02-391935

6.14 in L x 1.8 in W x 3.42 in H

Product Questions & Answers (2)

Question by: Tony B on May 15, 2025, 10:58 AM
Got a high-pressure tank line running at 3000 psi and the valve in there's been giving us grief. Would this Vickers unit hold up as a drop-in fix for that kind of application?
Answer by: Customer Support on May 16, 2025, 2:12 PM
Replacing a high-pressure valve in a 3000 psi tank line is exactly what this model was released to handle. The special features on this unit call that out directly, so you're not stretching its intended use at all. It runs on CMX style solenoids with a 17.5mm core tube, which is part of what makes it suitable for that kind of swap. Just make sure your existing setup aligns with those solenoid and core tube specs before you pull the trigger on the order.
Question by: Rick P on Sep 28, 2025, 8:26 AM
Reckon this valve could handle runnin' steady in a die casting setup?
Answer by: Customer Support on Sep 30, 2025, 6:21 AM
It can certainly be used in die casting and foundry applications, among others like machine tool, marine/offshore, press, primary metal, paper, test equipment & simulation, and turbine control.
