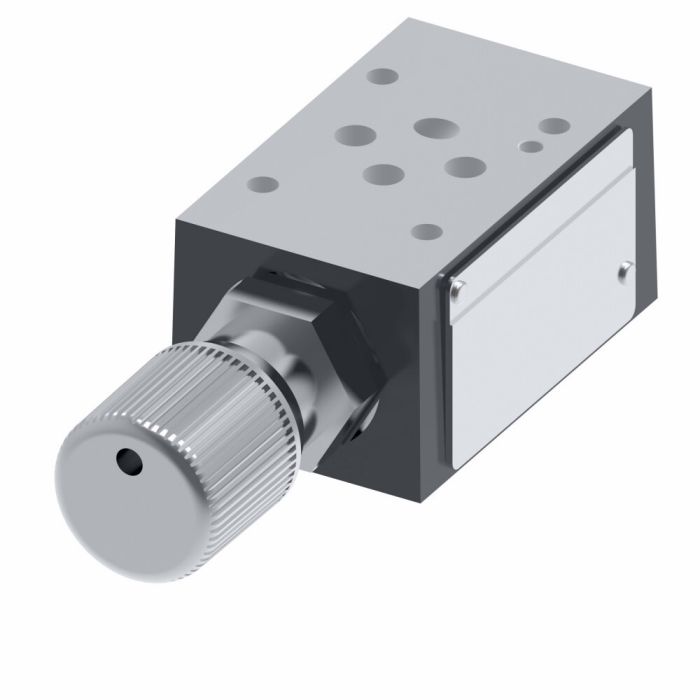

VICKERS DGMC 3 PT BH S 41

Ask A Question

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DGMC 3 Pt Bh S 41 is a SystemStak directional control valve offering a flow capacity of 60 litres per minute. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media.

As part of the Vickers SystemStak valve family, this unit reduces installation costs by eliminating the need for individual valve bodies and external interconnecting lines, which also helps eliminate external leakage and strengthens resistance to contamination. Suitable for use across a wide range of industrial sectors, including machine tool, press, primary metals, marine and offshore, die casting and foundry, turbine control, and test and simulation equipment, this valve is well suited to applications where compact, reliable directional control is a priority.

SKU: 02-310884

Supplier Part Number (MPN): 02-310884

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Handknob
Body Material
Iron
Connection Type
SAE
Design
41 Series
Dimensions
6.5 in L x 1.87 in W x 1.57 in H
Discharge 1
Discharge into T
Domestic/Import
Domestic
End Type
SAE
First Function
Pressure Limited in P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
Media
Petroleum Oil
Nominal Size
#03
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Duane M on Mar 8, 2026, 7:25 PM
reckon this'll work okay in a machine shop environment?
Answer by: Customer Support on Mar 9, 2026, 9:37 PM
Designed for demanding industrial hydraulic circuits, this Vickers directional control valve should hold up well. Its resistance to contamination will be a big plus in that setting.
Question by: Neil T on Oct 4, 2025, 8:54 PM
flow capacity on this valve is listed at 60 LPM -- is that enough for most press and machine tool setups, or is it on the lower end for heavy industrial work?
Answer by: Customer Support on Oct 6, 2025, 8:19 PM
For most machine tool and press applications, 60 litres per minute is a solid working range. These environments typically run controlled, moderate flow demands rather than high-volume continuous bursts, so this valve fits right in the sweet spot for that kind of work. It's also rated for primary metals, die casting, and foundry use, which tells you it's built to handle real industrial duty, not just light bench work.
