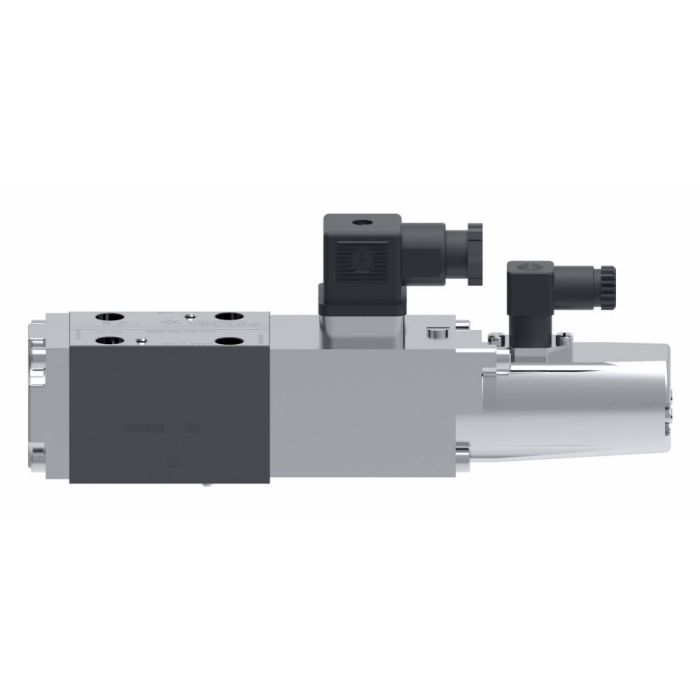

main product photo

VICKERS KSDG4V 3 96L 05 M

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers KSDG4V 3 96L 05 M is a direct-acting proportional valve with fluorocarbon seals, offering a flow rate of 5 litres per minute. It is available in three performance levels, ultra, high, and standard, providing flexibility across a broad range of application requirements without the need for custom configuration.

Plug-and-play functionality reduces commissioning time, making this valve well suited for integration into new and existing systems. Typical applications include machine tool, press, primary metal, die casting and foundry, marine and offshore, turbine control (wind, steam, and water), and test equipment and simulation environments.

SKU: 02-310932

Supplier Part Number (MPN): 02-310932

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Orientation
Solenoid at B Port End
Build Type
Standard
Design Series
11 Series
Dimensions
9.09 in L x 1.89 in W x 3.43 in H
Domestic/Import
Domestic
Feedback Sensor
With Feedback Sensor
Language
English
Manual Override
Plain
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
Servo
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KSDDG4V-3 11 Series
Spool Type
Zero LAP, Closed Centre (All Ports)
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Roger C on Nov 2, 2025, 10:14 AM
Got a press line that runs pretty hard and we been hunting for a proportional valve that don't need a bunch of setup time to get dialed in. This one any good for that kind of work?
Answer by: Customer Support on Nov 4, 2025, 8:49 AM
Plug-and-play functionality is built into this valve specifically to cut down on commissioning time, so dropping it into an existing press line is about as straightforward as it gets for a proportional valve. It's a direct-acting design, which keeps the control response clean without adding complexity. Flow rate is 5 litres per minute, so as long as that fits your system's demand, it's a solid match for press applications.
