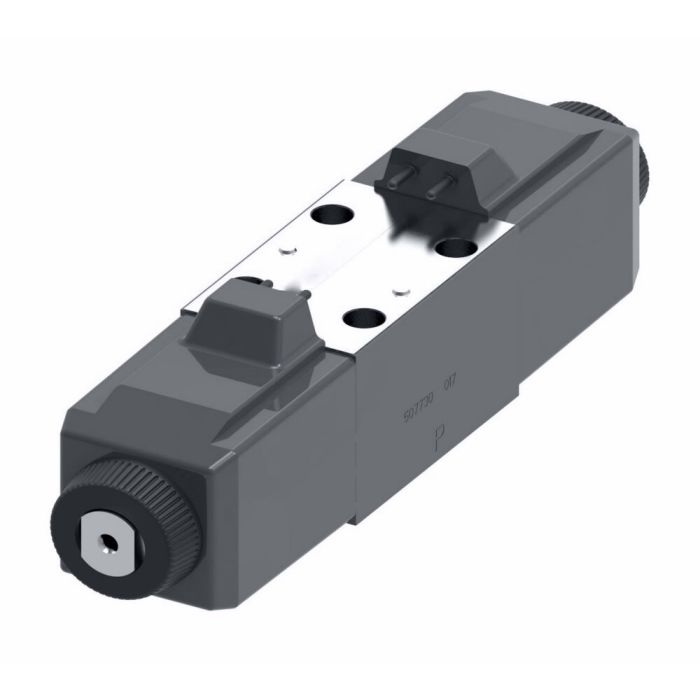

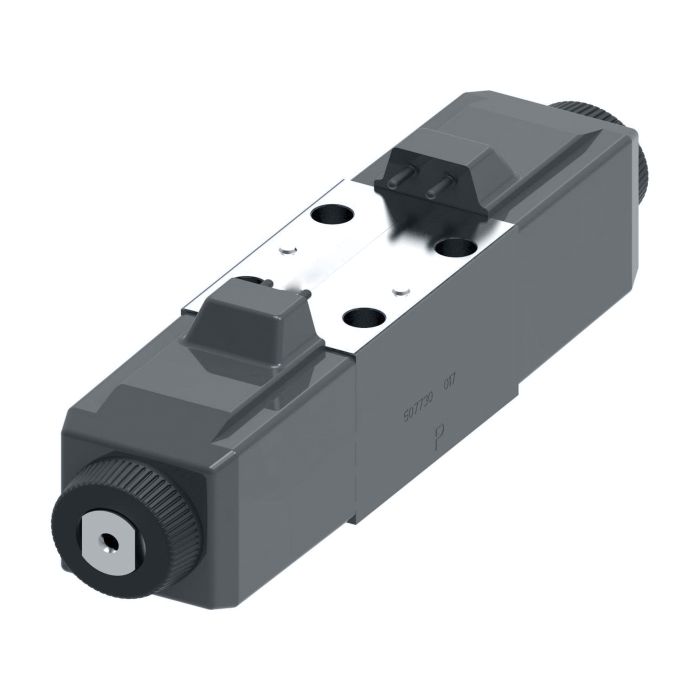

main product photo

VICKERS DG4V36CMPH760EN96

Ask A Question

Description & Features

The Eaton Vickers DG4V36CMPH760EN96 directional control valve is suitable for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, and water).

Featuring Buna-N seals, this Vickers valve offers reliable performance with a flow rate of 80 liters per minute. The special features include DG4V-3-**C-M-P-H7-60-EN96 valve with plug-in coils without connector for Uniplug. It has a wattage of 30 and a width of 1.88 inches.

SKU: 02-310982

Supplier Part Number (MPN): 02-310982

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.57 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
Buna-N
Segment Code
B
Series
DG4V-3 60 Series
Special Features
DG4V-3-**C-M-P-H7-60-EN96 Valve with Plug-In Coils Without Connector for Uniplug
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Shane J on Mar 24, 2026, 8:10 AM
trying to match up a valve i’ve got, is this one the Eaton Vickers DG4V-3 C M P H7-60 EN96 with the plug-in coils and no connector for uniplug?
Answer by: Customer Support on Mar 25, 2026, 10:06 AM
For identification, the special feature callout on this unit matches that exact build string, DG4V-3-**C-M-P-H7-60-EN96, and it is specified as a valve with plug-in coils without a connector for Uniplug.
Question by: Rusty R on Dec 9, 2025, 7:25 PM
plug-in coils on this one come without a connector, does that mean I gotta source the uniplug connector separate, or is there some other way to wire it up?
Answer by: Customer Support on Dec 11, 2025, 6:04 AM
Correct, the coils on this valve are the plug-in style but ship without a connector attached. You'll need to supply a compatible uniplug connector separately to complete your wiring. That's actually pretty common with this configuration since it gives you flexibility on how you terminate the connection in the field rather than being locked into one fixed setup.
