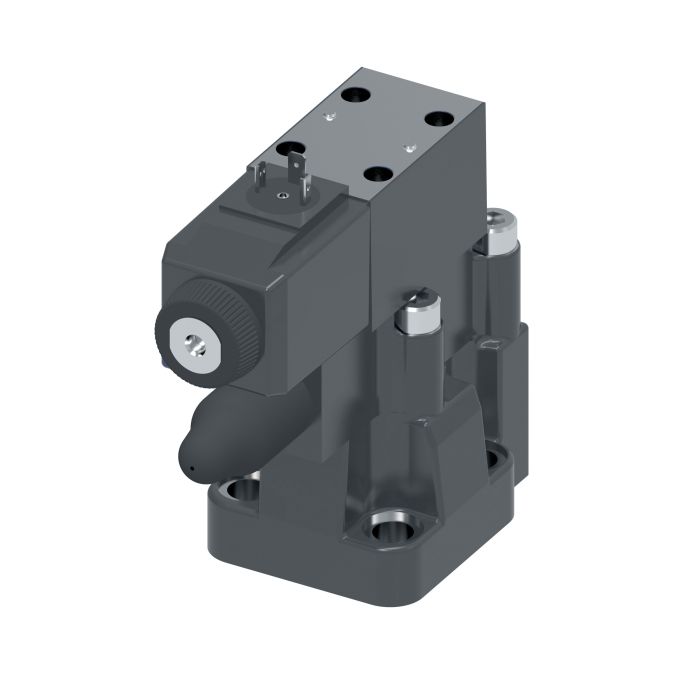

main product photo

VICKERS KCG 8 W2503ZMUHL110

Ask A Question

Description & Features

Designed for high-flow proportional control applications, the Vickers KCG 8 W2503ZMUHL110 is a size 8 proportional valve rated for flow up to 400 litres per minute. Buna-N seals provide reliable resistance to a broad range of hydraulic fluids commonly used in industrial circuits.

As part of Vickers' KCG proportional valve series, this unit is suited to demanding hydraulic systems where precise, variable flow or pressure control is required. The proportional design allows for continuous, electronically modulated output rather than simple on/off switching, making it well-matched to mobile or stationary machinery with dynamic load requirements.

SKU: 02-311216

Supplier Part Number (MPN): 02-311216

Specifications

Actuator Type
Pilot Operated, Solenoid
Build Orientation
Solenoid at B Port End
Design
10 Series
Domestic/Import
Import
Feedback Sensor
Without Feedback Sensor
Manual Adjustment
Screw and Locknut
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Nominal Size
#08
Number of Stages
2
On Board Electronics
Without On Board Electronics
Performance
Standard
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KCG8 Series
Valve Mount Type
Subplate

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Joyce B on Mar 31, 2026, 7:44 PM
Flow's rated up to 400 LPM on this thing, is that realistic for continuous high-demand circuits or more of a peak figure?
Answer by: Customer Support on Apr 2, 2026, 6:48 AM
For a size 8 proportional valve in the KCG series, 400 litres per minute is the rated flow capacity. Proportional valves like this one are built around continuous, electronically modulated control rather than simple switching, so they're well-suited to dynamic systems where flow demand fluctuates. That said, your actual system design, line sizing, and pump output all factor into whether you hit that ceiling in practice.
Question by: Connie S on Aug 29, 2025, 7:52 AM
What kind of hydraulic fluid is okay to run in this valve?
Answer by: Customer Support on Aug 30, 2025, 9:47 PM
Buna-N seals give you pretty good protection against most common hydraulic fluids you'd find in an industrial setup.
