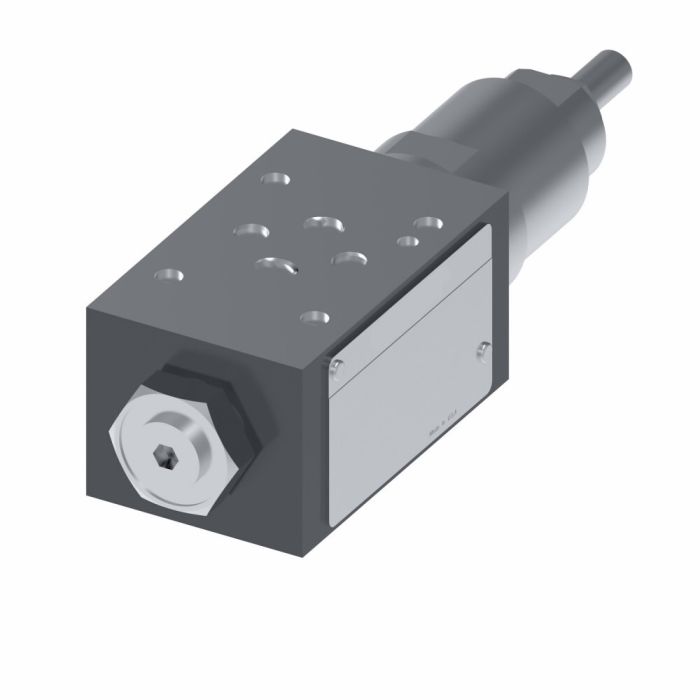

main product photo

VICKERS DGMX1 3 PP AW S 40

Ask A Question

Description & Features

Designed for machine tool and multiple industrial applications, the Vickers DGMX1 3 PP AW S 40 is a SystemStak directional control valve built to simplify circuit assembly and reduce installation costs. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic fluids, while the stacked valve design eliminates external leakage points and boosts resistance to contamination.

Rated for flow up to 60 litres per minute, this Vickers valve integrates cleanly into SystemStak assemblies, reducing the number of external connections required between components. The compact form factor, measuring 2.82 inches in width, supports space-efficient manifold configurations in industrial hydraulic circuits.

SKU: 02-311737

Supplier Part Number (MPN): 02-311737

Alternate Part Numbers: DGMX13PPAWS40

Specifications

Actuator Type
Pressure Operated
Adjustment Location
Adjuster - B Port End of Valve
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
Female UNF
Design Series
40 Series
Dimensions
6.65 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
Female UNF
Function Ports
Reducing Line P, Pilot Line P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
Language
English
Media
Petroleum Oil
Nominal Size
#03
Number of Ports/Ways
3-Port
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
B
Series
DGMX1-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Bonnie C on Feb 17, 2026, 6:37 AM
got a SystemStak assembly I'm trying to keep tight on connections, does this valve play nice with that kind of setup, or am I looking at extra hydraulic connections to make it work?
Answer by: Customer Support on Feb 19, 2026, 6:39 AM
SystemStak is exactly what this valve was built for. It stacks directly into those assemblies and cuts down on the external connections you'd otherwise need between components. Less hydraulic connections, fewer potential leak points, and a cleaner overall circuit. The design also eliminates external leakage paths on its own, which helps if contamination is a concern in your application.
