VICKERS DGMDC 3 Y BN 41

Ask A Question

Description & Features

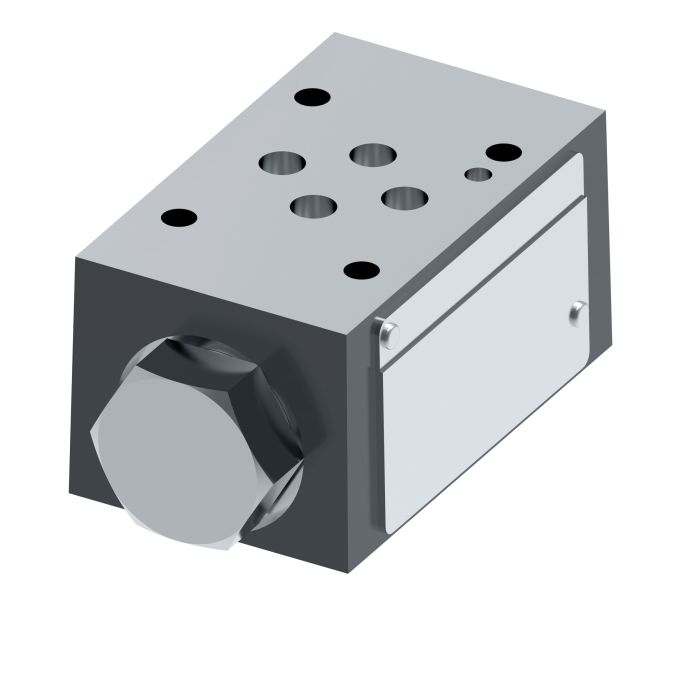

The Vickers DGMDC 3 Y BN 41 directional control valve is designed to excel in demanding hydraulic applications such as die casting, marine, and turbine control. This valve, part of the renowned Vickers by Danfoss/Eaton line, is engineered to reduce installation costs and eliminate external leakage, ensuring reliable performance and durability. With a robust flow rate of 60 liters per minute, it offers superior resistance to contamination, making it ideal for challenging environments.

Crafted with Buna-N seal material, the Vickers DGMDC 3 Y BN 41 is built for precision and reliability. Its compact width of 1.87 inches allows for versatile integration into various industrial systems. This valve's ability to perform in primary metal, paper, and test equipment applications underscores its versatility and effectiveness across multiple sectors.

SKU: 02-312345

Supplier Part Number (MPN): 02-312345

Specifications

Actuator Type
Pressure Operated
Body Material
Iron
Check Location
Line B
Design Series
41 Series
Dimensions
3.5 in L x 1.87 in W x 1.57 in H
Direction of Flow
Towards Actuator
Domestic/Import
Domestic
Language
English
Material Standard
ANSI B93.7M-D03
Media
Petroleum Oil
Mounting Type
Manifold, Subplate
Nominal Size
#03
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DGMDC-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Harold O on Mar 14, 2026, 9:30 AM
Just wanna make sure, will this valve work for a die casting setup?
Answer by: Customer Support on Mar 16, 2026, 9:17 AM
It's definitely suitable; this Vickers valve is made for demanding hydraulic jobs like die casting, plus marine and turbine controls.
Question by: Brett H on Aug 27, 2025, 4:28 PM
Flow rate on this one listed at 60 liters per minute, is that enough for press or die casting work, or is this valve more suited to lighter duty applications?
Answer by: Customer Support on Aug 28, 2025, 8:44 PM
Sixty liters per minute puts it well within range for die casting, press use, and similar industrial work. Those are actually among the core applications this valve was built around, along with marine systems and turbine control. It's not a lightweight component, it's rated and intended for demanding environments where flow consistency matters.
