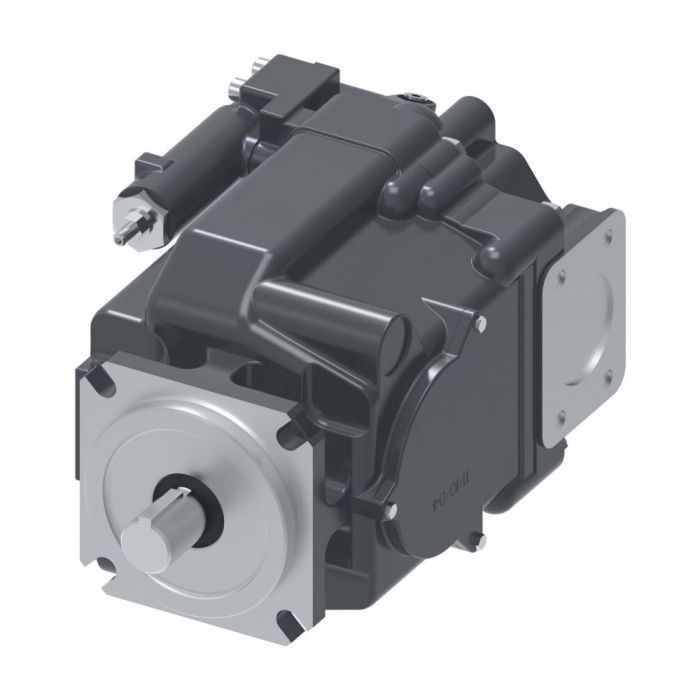

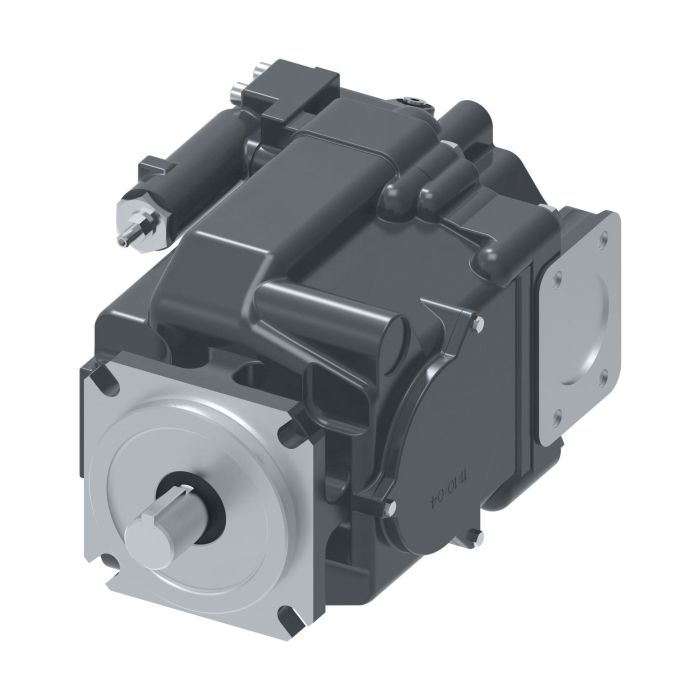

main product photo

VICKERS PVH131C RBF 12S 10

Ask A Question

Description & Features

Designed for demanding industrial applications, the Vickers PVH131C RBF 12S 10 is a robust open circuit piston pump, ideal for environments such as mining machinery, injection molding machines, and oil and gas equipment. Its durable construction ensures long-lasting performance, while torque-limiting capabilities enhance its operational efficiency.

This pump is a flagship component in the Vickers PVH series, known for their reliability in metal forming and cutting machines, as well as primary metals and conveyor lines. The product's sturdy build is complemented by its optimized design, suitable for a wide range of industrial settings.

SKU: 02-314985

Supplier Part Number (MPN): 02-314985

Alternate Part Numbers: C1JU69, PVH131CRBF12S10C25V31

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Pressure Compensated/Pressure Flow Compensated Open Circuit Piston Pump
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
17.04 in L x 10 in W x 11.29 in H
Drain Port Size Location
7/8-14 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 13T 8/16 DP Splined Shaft, 75 mm [2.95 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2-1/2 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1-1/40 SAE 4 Bolt Split Flanged Port High Pressure Series (Code 62) with 1/2-13 UNC-2B Threads
Mounting Type
2-Bolt Flanged, 4-Bolt Flanged
nmfc
125820
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
B
Series
PVH Series

Product Questions & Answers (1)

Question by: Hugh W on Jun 28, 2025, 10:43 AM
What kind of equipment is this pump actually built for? Got a mining operation and trying to figure out if it fits our setup.
Answer by: Customer Support on Jun 30, 2025, 6:56 AM
Mining machinery is one of the core applications this pump was made for, along with oil and gas equipment, injection molding machines, metal forming and cutting machines, conveyor lines, and primary metals use. It's an open circuit piston pump from the Vickers PVH series, and the series has a solid reputation for handling demanding industrial environments. If your mining setup runs heavy-duty hydraulic systems, this is the kind of pump that was put together with that workload in mind.
