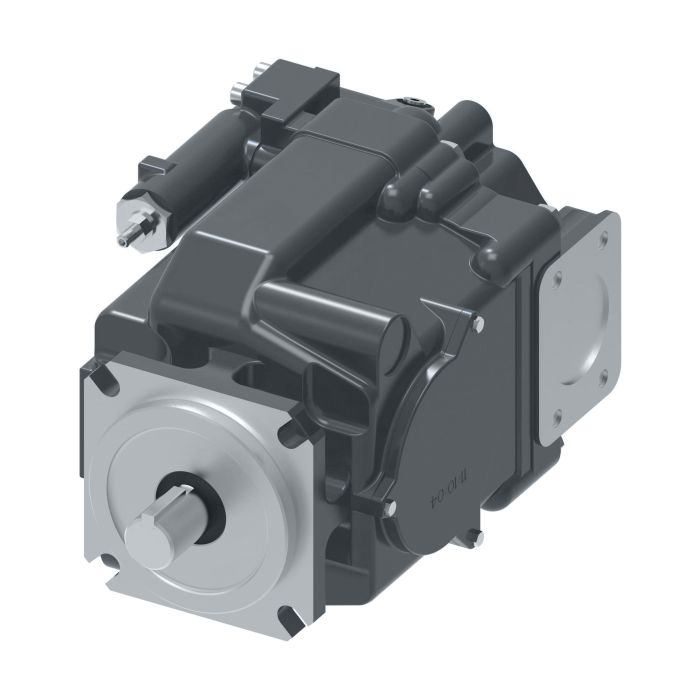

VICKERS PVH57QIC RSF 1S 10 C25V 31

Ask A Question

Description & Features

The Vickers PVH57QIC RSF 1S 10 C25V 31 is an open circuit piston pump used in a variety of applications.

This Vickers sub-branded pump is suitable for use in mining machinery, injection molding machines, metal forming machines, oil and gas equipment, conveyor lines, primary metals, and metal cutting equipment. It offers long-lasting durability, torque-limiting capabilities, and durable construction. This unit features a Q250 valve plate and measures 7.99 inches wide.

SKU: 02-315008

Supplier Part Number (MPN): 02-315008

Alternate Part Numbers: PVH57QICRSF1S10C25V31

Specifications

Brand
Vickers by Danfoss
Control Type
Pressure and Flow Compensator
Controller Type
Pressure and Flow Compensator
Design Code
A
Dimensions
13.74 in L x 7.99 in W x 10.06 in H
Drive Shaft Type
Keyed
Housing Material
Iron
Input Shaft Rotation
Clockwise (Right-Hand) Right Side Suction Port, Left Side Pressure Port
Maximum Displacement Option
Adjustable Maximum Displacement (Set At Maximum)
Mounting Type
4-Bolt Flanged
nmfc
125820
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Segment Code
C
Series
PVH Series

Product Questions & Answers (2)

Question by: Rick H on Nov 8, 2025, 1:47 PM
what all can this pump be used on? got a metal forming setup and trying to figure out if it'll work before I order
Answer by: Customer Support on Nov 10, 2025, 8:11 AM
Metal forming is actually one of the listed applications for this pump, so you're in good shape there. It also covers mining machinery, injection molding machines, oil and gas equipment, conveyor lines, primary metals processing, and metal cutting equipment. Pretty wide range of industrial use cases, which makes it a solid fit for heavy shop environments like what you're describing.
Question by: Dwight D on Jan 14, 2026, 9:23 AM
What kind of equipment does this pump typically go in?
Answer by: Customer Support on Jan 15, 2026, 5:28 PM
This Vickers piston pump is commonly found in mining machinery, injection molding machines, metal forming machines, and oil and gas equipment, among other applications.
