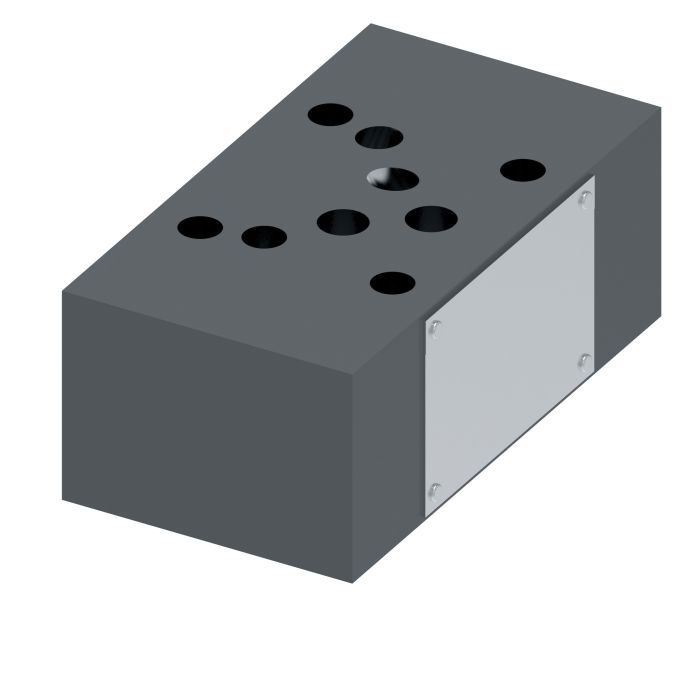

VICKERS DGMDC 5 Y BM 30

Description & Features

Designed for demanding industrial environments, the Vickers DGMDC 5 Y BM 30 is a directional control valve built on the SystemStak platform, supporting flows up to 120 litres per minute. The stacked valve architecture reduces installation complexity by eliminating the need for additional manifold work between valve stages, and the integrated design minimizes potential external leak paths.

Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media. This valve is suited to a wide range of heavy-duty applications, including machine tool circuits, press systems, die casting and foundry equipment, primary metal and paper processing machinery, marine and offshore installations, turbine control systems, and test and simulation equipment. The design also offers enhanced resistance to contamination, making it appropriate for circuits where fluid cleanliness is critical to consistent performance.

SKU: 02-316282

Supplier Part Number (MPN): 02-316282

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Check Location Line B	Design Series 30 Series	Dimensions 5.43 in L x 2.82 in W x 1.97 in H	Direction of Flow Towards Actuator	Domestic/Import Domestic	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #5	Performance Standard	Port Operated Upon B Cylinder Port	Seal Material FKM	Segment Code B	Series DGMDC-5 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Gene H on Apr 21, 2025, 4:23 PM

Got a press system that's been giving us fits with leaks between valve stages. would this DGMDC 5 Y BM 30 help with that, or are we barking up the wrong tree?

Answer by: Customer Support on Apr 22, 2025, 9:42 PM

Stacked valve setups like this one are built specifically to cut down on those kinds of leak points. The SystemStak architecture means the stages connect directly without needing extra manifold work between them, so you're eliminating a lot of the external leak paths that come with traditional hydraulic connections arrangements. Buna-N seals handle a broad range of hydraulic fluids without breaking down, which helps keep things tight over the long haul. For press circuits, that combination tends to make a real difference.

Question by: Bobby G on May 13, 2025, 12:15 PM

Is this a direct replacement for the DGMDC 5 Y BM 30 I already got in my machine?

Answer by: Customer Support on May 15, 2025, 6:25 AM

Yes, this is the Vickers DGMDC 5 Y BM 30 directional control valve. The supplier part number is 02-316282.
