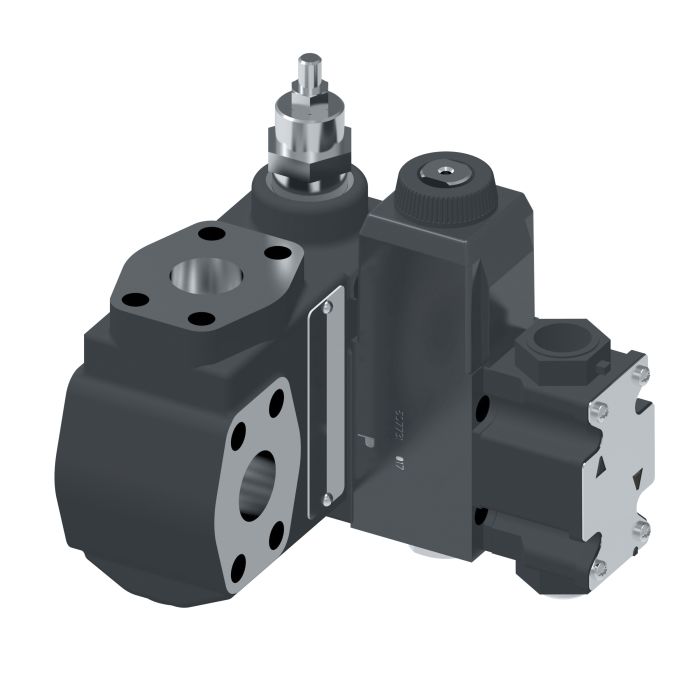

Vickers CPF2S 06 F W 3S M

Description & Features

This Vickers CPF2S 06 F W 3S M pressure control valve is suitable for applications requiring adjustable pressure relief or regulating to limit pressure in a hydraulic circuit to a desired maximum. It features a plug-and-play design and moisture resistant construction. The valve uses a Buna-N seal and offers high-performance features.

With a flow rate of 100 liters per minute, this Vickers valve has a product width of 2.5 inches and requires 30 watts.

SKU: 02-317443

Supplier Part Number (MPN): 02-317443

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 20 Series	Dimensions 5.5 in L x 2.5 in W x 7.09 in H	Domestic/Import Domestic	Drain Internal	Electrical Connection 1/2 in NPT Housing Flying Leads	End Type SAE	Gauge Port Thread 1/4 in BSP	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Nominal Size 3/4 in	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CPF2S-06 Series	Valve Mount Type Flange-Mounted	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Harold P on May 18, 2025, 12:50 PM

Flow rate on this one says 100 liters per minute -- is that enough for most standard hydraulic circuits running pressure relief setups?

Answer by: Customer Support on May 19, 2025, 8:57 PM

For a lot of general hydraulic pressure relief applications, 100 liters per minute handles the job just fine. Where you might run into a ceiling is in higher-demand systems pushing significantly more flow through the circuit. As long as your system isn't exceeding that rated flow, this valve should regulate and relieve pressure without issue.

Question by: Glen R on Apr 26, 2025, 1:21 PM

Will this pressure valve work alright in a hydraulic system that sees a fair amount of moisture?

Answer by: Customer Support on Apr 28, 2025, 7:55 AM

It's moisture resistant, so it should hold up well in those conditions.
