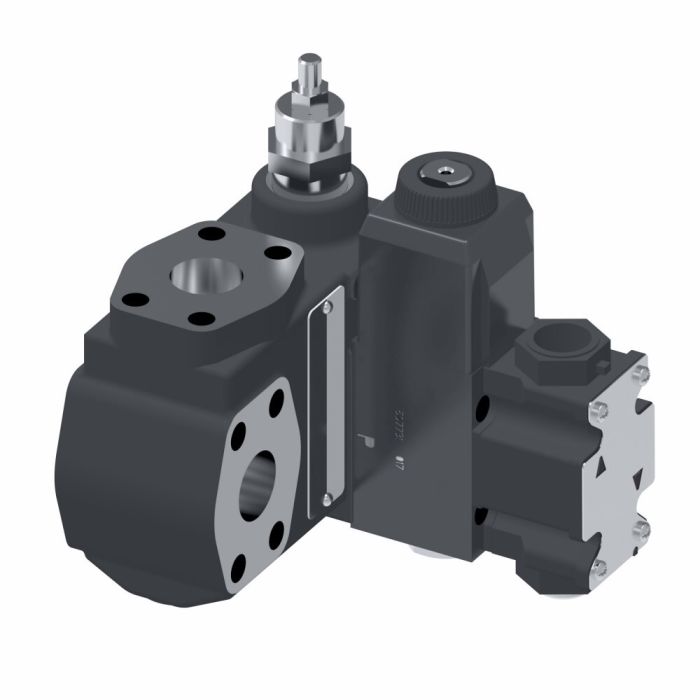

Vickers CPF2S 10 G W 3S M

Description & Features

Designed for hydraulic circuits that require precise pressure management, the Vickers CPF2S 10 G W 3S M is an adjustable pressure control valve suited to applications where limiting maximum circuit pressure is critical. It handles flow rates up to 600 litres per minute, making it appropriate for demanding industrial hydraulic systems.

Buna-N seals provide reliable resistance to common hydraulic fluids, while the moisture-resistant construction supports use in challenging environments. The plug-and-play design simplifies installation and integration into existing circuits. Rated at 30 watts and manufactured under the Vickers brand by Danfoss/Eaton, this valve reflects the CPF2S series' established positioning in industrial pressure regulation.

SKU: 02-317516

Supplier Part Number (MPN): 02-317516

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 20 Series	Dimensions 7.42 in L x 6.57 in W x 6.58 in H	Domestic/Import Domestic	Drain Internal	Electrical Connection 1/2 in NPT Housing Flying Leads	End Type SAE	Gauge Port Thread 1/4 in BSP	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CPF2S-10 Series	Valve Mount Type Flange-Mounted	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Debbie C on Jul 4, 2025, 7:41 AM

If I'm trying to control pressure in a hydraulic circuit, will this valve do the job?

Answer by: Customer Support on Jul 5, 2025, 5:10 PM

Absolutely. This Vickers CPF2S valve is designed for just that – regulating pressure and limiting the maximum pressure in a hydraulic circuit.

Question by: Marvin H on Dec 28, 2025, 11:40 AM

Flow rate on this one says 600 litres per minute, that enough for a pretty heavy-duty industrial setup or is this more of a mid-range valve?

Answer by: Customer Support on Dec 29, 2025, 12:04 PM

600 litres per minute puts it well into serious industrial territory. That kind of flow capacity handles demanding hydraulic circuits without breaking a sweat, so if you're running high-volume systems that need a reliable pressure ceiling, this valve fits the bill. It's built for exactly that kind of work, not light-duty stuff.
