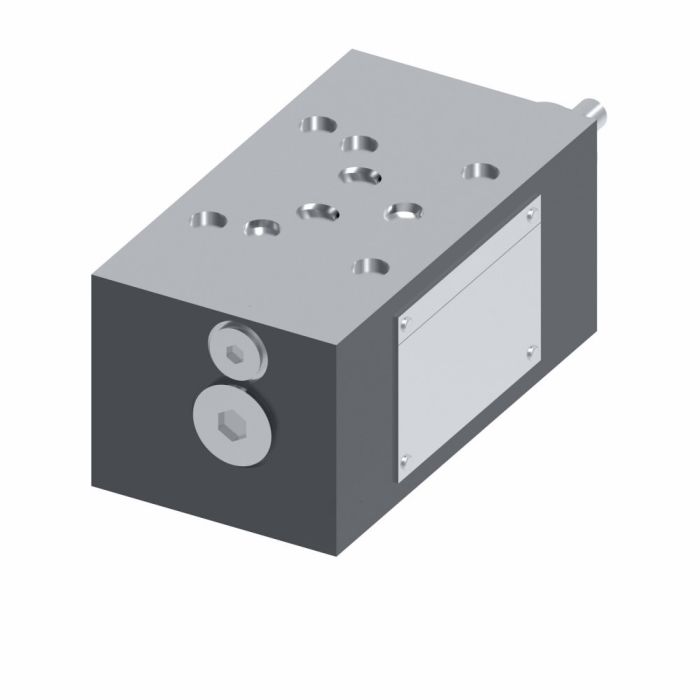

Vickers DGMX2 5 PA AW RC S

Description & Features

Designed for machine tool and industrial applications, the Vickers DGMX2 5 PA AW RC S enhances system efficiency by reducing installation costs and eliminating external leakage. This robust directional control valve accommodates a flow rate of up to 120 liters per minute, ensuring reliable performance in demanding environments. Manufactured by Vickers, a trusted name in hydraulic solutions, it stands out for its resistance to contamination, thanks to its high-quality Buna-N seal material.

The compact design, with a width of just 2.82 inches, allows for easy integration into various systems without compromising functionality. This valve, part of the Vickers SystemStak series, is an ideal choice for those seeking a durable and efficient component to manage fluid direction with precision. Its engineering excellence is evident in its ability to maintain optimal performance under challenging conditions, making it a preferred choice among industry professionals.

SKU: 02-317815

Supplier Part Number (MPN): 02-317815

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female UNF	Design Series 30 Series	Dimensions 6.65 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	External Drain Without External Drain	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #5	Number of Ports/Ways 5-Port	Number of Stages 1	Pilot Control Cylinder Port A	Port Operated Upon P Pressure Port	Remote Control Port With Remote Control Port	Seal Material Buna-N	Segment Code C	Series DGMX2-5 Series	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Connection Type	End Type	Dimensions
02-119484	Female UNF	Female UNF	10.11 in L x 2.82 in W x 2.36 in H
02-140897	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-143718	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-143814	BSP	BSP	9.13 in L x 3.66 in W x 3.15 in H
02-154566	Female UNF	Female UNF	7.05 in L x 2.82 in W x 2.36 in H
