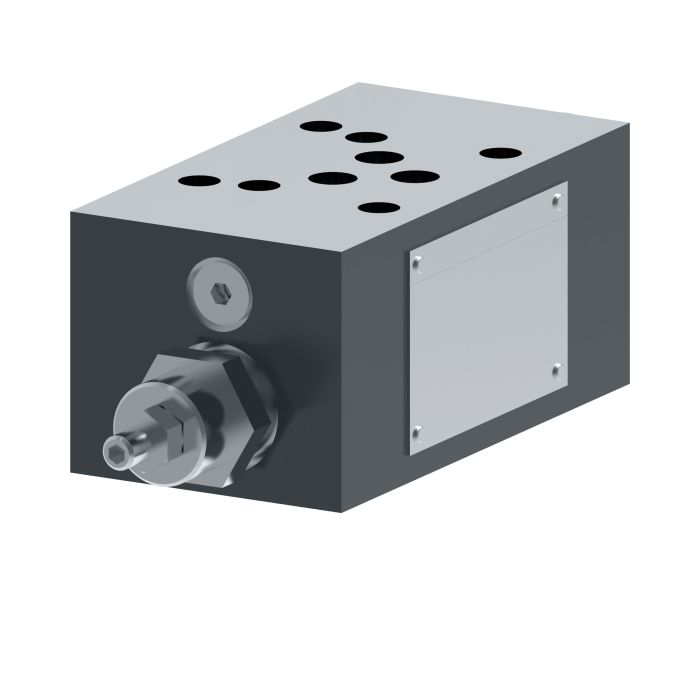

main product photo

Vickers DGMC2 5 AB GW BA GW

Ask A Question

Description & Features

The Vickers DGMC2 5 AB GW BA GW is a system stak valve designed for demanding applications such as die casting and foundry, machine tools, marine and offshore, presses, primary metal, paper, test equipment and simulation, and turbine control for wind, steam, and water.

This Vickers valve offers a flow rate of 120 liters per minute and features Buna-N seals. Benefit from reduced installation costs, elimination of external leakage, and boosted resistance to contamination when using this system stak valve.

SKU: 02-317832

Supplier Part Number (MPN): 02-317832

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
SAE
Design
30 Series
Dimensions
8.46 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
End Type
SAE
External Drain
Without External Drain
Function 1 Pressure Adjustment
60 to 4500 psi
Function 2 Pressure Adjustment
60 to 4500 psi
Gauge Port Thread
SAE 4 O-ring Boss Port
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
2
P Port Acted Upon
B Cylinder Port
Performance
Standard
Port Drained Into
B Cylinder Port
Port Drained Into Dual
A Cylinder Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC-2 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Brent T on Jul 9, 2025, 12:29 PM
what all industries is this valve actually built for? got a couple different applications we're running and tryin to figure out if one valve covers it
Answer by: Customer Support on Jul 11, 2025, 6:23 AM
Quite a few, actually. The DGMC2-5 AB GW BA GW covers die casting and foundry work, machine tools, marine and offshore setups, presses, primary metal and paper use, test equipment and simulation rigs, and turbine control systems including wind, steam, and water. So if your applications fall into any of those categories, you're in good shape with a single part.
Question by: Janice M on Mar 7, 2026, 7:00 AM
Will this here Vickers valve work on die casting equipment?
Answer by: Customer Support on Mar 8, 2026, 4:29 PM
Yes, this Vickers valve is designed for applications such as die casting and foundry equipment.
