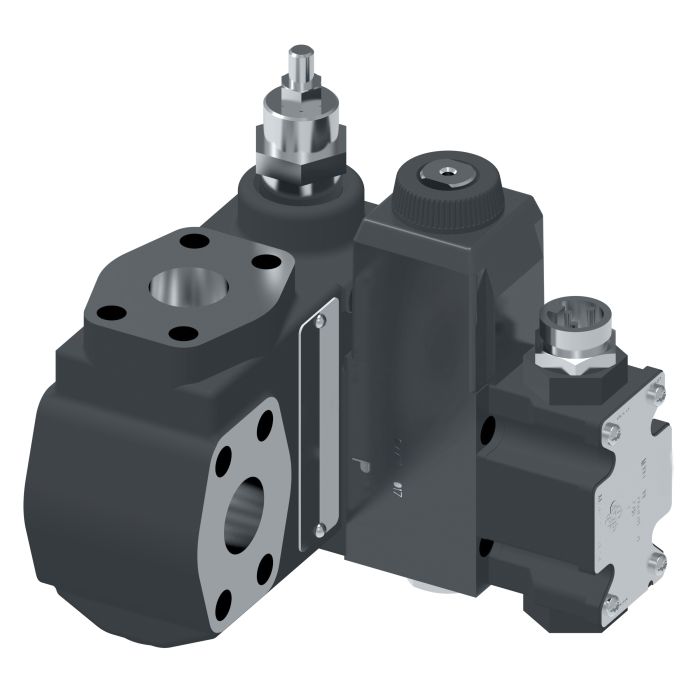

Vickers CPF2S 12 F W 3S M

Description & Features

Designed for hydraulic circuits requiring precise pressure management, the Vickers CPF2S 12 F W 3S M is an adjustable pressure control valve capable of handling flow rates up to 800 litres per minute. It is suited to applications where limiting circuit pressure to a defined maximum is critical, functioning as either a pressure relief or pressure regulating valve depending on circuit requirements.

Built with Buna-N seals for reliable fluid compatibility and moisture-resistant construction, this valve supports consistent performance in demanding industrial environments. The plug-and-play design simplifies installation and integration into existing hydraulic systems. Rated at 30 watts, it delivers capable pressure control within a compact, functional package.

SKU: 02-318062

Supplier Part Number (MPN): 02-318062

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 20 Series	Dimensions 7.55 in L x 6.5 in W x 7.09 in H	Domestic/Import Domestic	Drain Internal	Electrical Connection 5-Pin Connector	End Type SAE	Gauge Port Thread 1/4 in BSP	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CPF2S-12 Series	Valve Mount Type Flange-Mounted	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (2)

Question by: Marvin E on Mar 11, 2026, 5:01 PM

flow rate on this thing goes up to 800 liters per minute -- that right? trying to figure out if it'll keep up with our system before we order

Answer by: Customer Support on Mar 13, 2026, 6:55 AM

Yeah, 800 litres per minute is the rated flow capacity on this valve. For most industrial hydraulic circuits, that's a solid ceiling, and it's built to handle that load consistently without sacrificing pressure control accuracy. If your system runs anywhere under that threshold, you're in good shape.

Question by: Dwayne R on Apr 2, 2026, 8:05 AM

If I'm needing to keep the pressure in my hydraulic system at a certain max, is this the right kinda valve?

Answer by: Customer Support on Apr 4, 2026, 6:02 AM

Yes, this Vickers CPF2S valve can function as either a pressure relief or pressure regulating valve to limit circuit pressure, depending on what your system requires.
