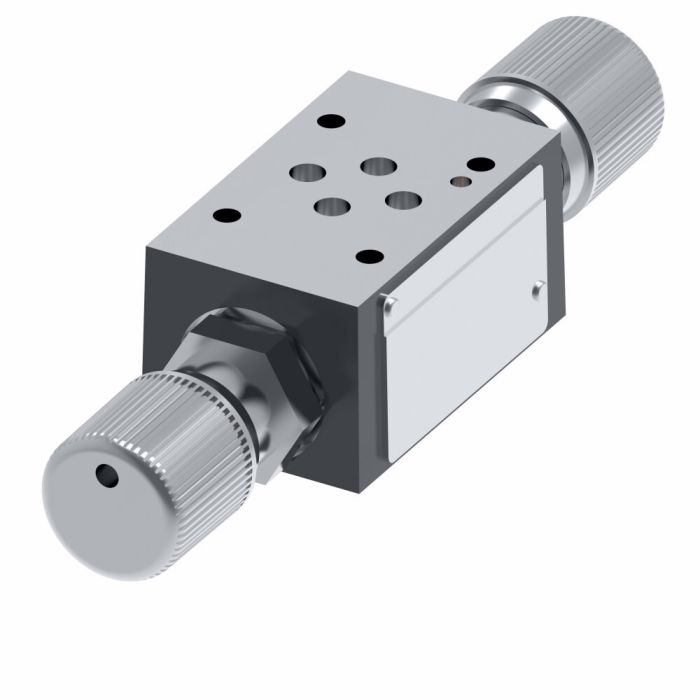

Vickers DGMC2 3 AB GH BA GH

Description & Features

Designed for demanding hydraulic circuit applications, the Vickers DGMC2 3 AB GH BA GH is a SystemStak directional control valve built to the 41 Design series standard. With a flow capacity of 60 litres per minute and Buna-N seals, it is well-suited for use across die casting and foundry environments, machine tool circuits, marine and offshore installations, press systems, primary metal and paper processing, test and simulation equipment, and turbine control systems covering wind, steam, and water applications.

As part of the Vickers SystemStak valve family, this unit reduces installation costs by allowing stacked circuit configurations, eliminating external leakage paths and boosting resistance to contamination compared to traditional manifold or individual valve arrangements. The 1.87-inch product width reflects its compact form factor within the stack assembly.

SKU: 02-318293

Supplier Part Number (MPN): 02-318293

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Type Handknob	Body Material Iron	Design 41 Series	Dimensions 9.5 in L x 1.87 in W x 1.57 in H	Discharge 1 Discharge into B	Discharge 2 Discharge into A	Domestic/Import Domestic	First Function Pressure Limited in A	Function 1 Pressure Adjustment 725 to 4500 psi	Media Petroleum Oil	Nominal Size #03	Number of Stages 2	Performance Standard	Seal Material FKM	Second Function Pressure Limited in B	Segment Code C	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Dimensions	Price	Action
02-109353	9.2 in L x 1.87 in W x 1.57 in H
02-109585	9.2 in L x 1.87 in W x 1.57 in H
02-139462	9.2 in L x 1.87 in W x 1.57 in H
02-139463	9.2 in L x 1.87 in W x 1.57 in H
02-139464	9.2 in L x 1.87 in W x 1.57 in H
02-146368	10 in L x 1.87 in W x 1.57 in H
02-146913	9.2 in L x 1.87 in W x 1.57 in H
02-147568	9.2 in L x 1.87 in W x 1.57 in H
02-147635	9.2 in L x 1.87 in W x 1.57 in H
02-156815	9.2 in L x 1.87 in W x 1.57 in H
02-156855	9.2 in L x 1.87 in W x 1.57 in H
02-157280	9.2 in L x 1.87 in W x 1.57 in H
02-157561	9.2 in L x 1.87 in W x 1.57 in H
02-300291	9.2 in L x 1.87 in W x 1.57 in H
02-311111	9.2 in L x 1.87 in W x 1.57 in H
02-319285	10 in L x 1.87 in W x 1.57 in H
02-323003	9.2 in L x 1.87 in W x 1.57 in H
02-323171	9.2 in L x 1.87 in W x 1.57 in H
02-323187	9.2 in L x 1.87 in W x 1.57 in H
02-323223	9.2 in L x 1.87 in W x 1.57 in H
02-323390	9.2 in L x 1.87 in W x 1.57 in H
02-332320	9.2 in L x 1.87 in W x 1.57 in H
02-333054	9.2 in L x 1.87 in W x 1.57 in H
02-333371	10 in L x 1.87 in W x 1.57 in H
02-350253	9.2 in L x 1.87 in W x 1.57 in H
02-412528	9.2 in L x 1.87 in W x 1.57 in H

Product Questions & Answers (2)

Question by: Harold P on Nov 29, 2025, 8:05 AM

flow rate on this valve is listed at 60 litres per minute -- is that enough for a typical press circuit or machine tool setup?

Answer by: Customer Support on Dec 1, 2025, 7:37 AM

For most press and machine tool applications, 60 litres per minute is right in the working range. These circuits rarely need more than that through a directional control valve at this stack size, so you're not likely to run into a bottleneck there. The SystemStak design also helps keep things clean by eliminating external leakage paths, which matters a lot in press environments where contamination can cause headaches fast.

Question by: Scott S on May 4, 2025, 12:04 PM

What kind of applications would this SystemStak valve be good for?

Answer by: Customer Support on May 5, 2025, 1:48 PM

This directional control valve works well in die casting and foundry environments, machine tool circuits, marine and offshore installations, press systems, primary metal and paper processing, test and simulation equipment, and turbine control systems covering wind, steam, and water applications.
