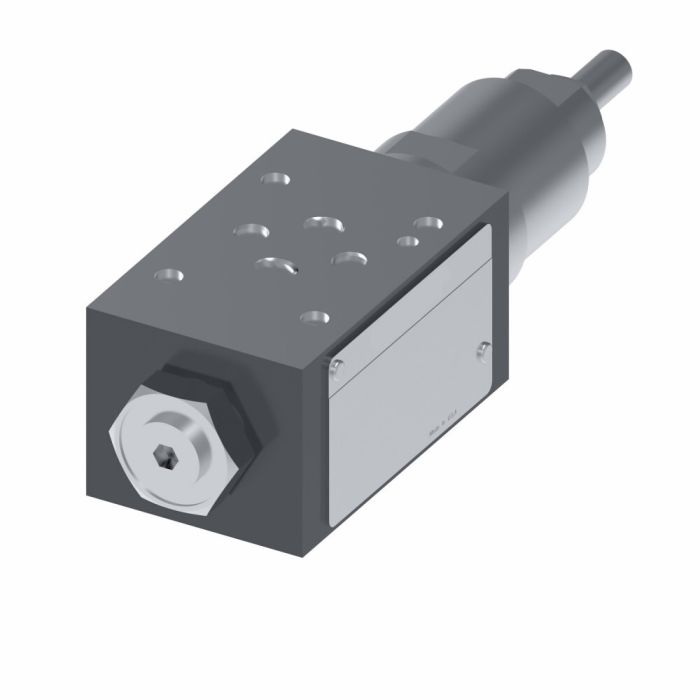

VICKERS DGMX2 3 PP FW S 40 EN91

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the Vickers DGMX2 3 PP FW S 40 EN91 is a SystemStak directional control valve built to simplify circuit assembly while maintaining reliable performance. As part of the Vickers SystemStak series, it mounts in a stacked configuration that reduces the need for separate interconnecting hardware, cutting installation time and minimizing potential external leak paths.

Rated for flow up to 60 litres per minute, this valve uses Buna-N seals and is engineered to resist contamination, a practical advantage in demanding industrial environments. The stacked design consolidates valve functions within a compact footprint, making it well suited for multi-valve assemblies on machine tool platforms and similar applications where space and cleanliness are priorities.

SKU: 02-319309

Supplier Part Number (MPN): 02-319309

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 10.11 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line P	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Segment Code C	Series DGMX2-3 Series	Special Features Valve Set at 200 bar, Wire Locked and Sealed	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Connection Type	End Type	Dimensions
02-108579	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-108794	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-109861	BSP	BSP	8.05 in L x 2.82 in W x 2.36 in H
02-110994	BSP	BSP	8.05 in L x 2.82 in W x 2.36 in H
02-138102	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-138202	BSP	BSP	9.16 in L x 2.82 in W x 2.36 in H
02-146266	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-146267	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-146377	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-146378	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-146671	BSP	BSP	10.11 in L x 2.82 in W x 2.36 in H
02-146700	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-146712	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-147233	BSP	BSP	10.11 in L x 2.82 in W x 2.36 in H
02-147248	BSP	BSP	5.83 in L x 2.82 in W x 2.36 in H
02-147257	Female UNF	Female UNF	7.05 in L x 2.82 in W x 2.36 in H
02-147308	Female UNF	Female UNF	5.83 in L x 2.82 in W x 2.36 in H
02-147618	BSP	BSP	8.05 in L x 2.82 in W x 2.36 in H
02-156427	BSP	BSP	10.11 in L x 2.82 in W x 2.36 in H
02-156823	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-156824	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-156826	BSP	BSP	8.19 in L x 2.82 in W x 2.36 in H
02-156891	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-157166	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-157697	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-157698	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-311490	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-311704	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-319329	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-319455	Female UNF	Female UNF	10.11 in L x 2.82 in W x 2.36 in H
02-323373	Female UNF	Female UNF	9.16 in L x 2.82 in W x 2.36 in H
02-323860	Female UNF	Female UNF	8.19 in L x 2.82 in W x 2.36 in H
02-332310	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-333307	Female UNF	Female UNF	7.05 in L x 2.82 in W x 2.36 in H
02-333573	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-333851	Female UNF	Female UNF	7.05 in L x 2.82 in W x 2.36 in H
02-350866	Female UNF	Female UNF	8.05 in L x 2.82 in W x 2.36 in H
02-353372	BSP	BSP	6.65 in L x 2.82 in W x 2.36 in H
02-358977	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-396729	Female UNF	Female UNF	6.65 in L x 2.82 in W x 2.36 in H
02-411166	BSP	BSP	5.83 in L x 2.82 in W x 2.36 in H

Product Questions & Answers (1)

Question by: Phil R on Jul 24, 2025, 2:37 PM

been looking at stacking valves to cut down on all the hydraulic connections mess on our machine tool setup, does this one actually help with that or is it more of a marketing claim

Answer by: Customer Support on Jul 25, 2025, 4:23 PM

Stacking is the whole point of the SystemStak design. Instead of running separate interconnecting hardware between valves, this mounts directly in a stacked configuration so the fluid paths are handled internally. That cuts down on fittings, reduces the number of potential leak points, and generally makes the assembly a lot cleaner and faster to put together on machine tool platforms.
