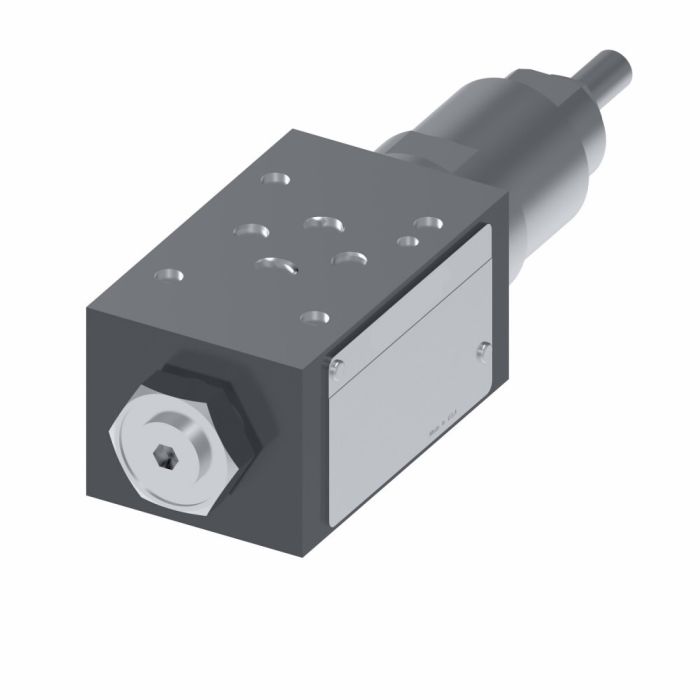

VICKERS DGMX1 3 PA CW B 40

Ask A Question

Description & Features

Ideal for machine tool and numerous industrial applications, the Vickers DGMX1 3 PA CW B 40 valve is an exemplary choice for those seeking reliability and performance. With a flow rate of 60 liters per minute, this hydraulic component ensures efficient operation and robust control. The use of Buna-N seal material enhances durability by effectively preventing external leakage and boosting resistance to contamination.

Designed to reduce installation costs, this IV Directional Control Valve by Vickers, a sub-brand of Danfoss / Eaton, eliminates unnecessary external leakage, ensuring seamless integration into your system. Its compact width of 2.82 inches allows for flexibility in tight spaces, and the valve's construction is optimized for long-term performance in demanding environments.

SKU: 02-319481

Supplier Part Number (MPN): 02-319481

Specifications

Actuator Type
Pressure Operated
Adjustment Location
Adjuster - B Port End of Valve
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
BSP
Design Series
40 Series
Dimensions
10.11 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
BSP
Function Ports
Reducing Line P, Pilot Line A
Gauge Port Thread
1/8 in BSPF
Language
English
Media
Petroleum Oil
Nominal Size
#03
Number of Ports/Ways
3-Port
Number of Stages
1
Performance
Standard
Seal Material
FKM
Segment Code
C
Series
DGMX1-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dean C on Apr 23, 2025, 5:16 PM
Reckon this'll hold up in a machine shop environment, with all the grime and whatnot?
Answer by: Customer Support on Apr 25, 2025, 9:00 AM
Buna-N seals are used in this directional control valve to provide enhanced durability and resistance to contamination, which makes it well-suited for demanding environments like machine shops.
Question by: Darryl H on Apr 6, 2026, 4:39 PM
seal material on this thing, is it gonna hold up if there's any contamination getting into the system?
Answer by: Customer Support on Apr 7, 2026, 9:50 PM
Buna-N is a solid choice for contamination resistance, which is exactly what this valve uses. It's not just about preventing external leakage either, that seal material actively helps the valve hold up better when fluid cleanliness isn't perfect. For machine tool environments and general industrial use, that combination of leak prevention and contamination resistance is a real practical benefit.
