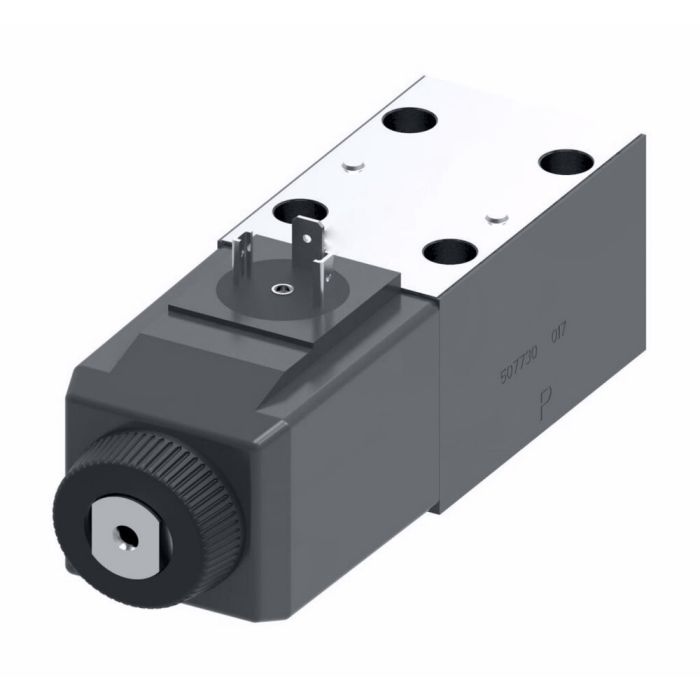

VICKERS DG4V323AMUH760EN38

Description & Features

Designed for applications where leakage control is critical, the Vickers DG4V323AMUH760EN38 is a directional control valve engineered to the low leakage, high head loss specification. Typical leakage is 5 ml/min per land at 100 bar, achieved through specially designed spools with increased overlap. Head loss is approximately twice that of a standard valve, which is an expected trade-off for the tighter leakage performance.

Rated at a flow capacity of 80 litres per minute with a 30-watt solenoid and Buna-N seals, this valve is suited to demanding industrial environments. Applicable sectors include machine tool, press, primary metal, die casting and foundry, marine and offshore, turbine control, and test and simulation equipment. Installation and assembly references are drawing numbers 508190 and 698501 respectively, with test procedure 698502.

SKU: 02-319492

Supplier Part Number (MPN): 02-319492

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Design 60 Series	Dimensions 6.14 in L x 1.88 in W x 3.42 in H	Domestic/Import Domestic	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance High	Seal Material FKM	Series DG4V-3 60 Series	Special Features Low Leakage	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 23	Spring Arrangement Spring Offset End to End	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Voltage Rating	Dimensions	Price	Action
02-108003		6.14 in L x 1.8 in W x 3.42 in H
02-108004		6.14 in L x 1.8 in W x 3.42 in H
02-108076		6.14 in L x 1.8 in W x 3.42 in H
02-108115		6.14 in L x 1.8 in W x 3.42 in H
02-108166		8.66 in L x 1.8 in W x 3.42 in H
02-108175		6.14 in L x 1.8 in W x 3.42 in H
02-108424		8.66 in L x 1.8 in W x 3.42 in H
02-109320		6.14 in L x 1.8 in W x 3.42 in H
02-109533		8.66 in L x 1.8 in W x 3.42 in H
02-110092		8.66 in L x 1.8 in W x 3.42 in H
02-110108		6.14 in L x 1.8 in W x 3.42 in H
02-110279		6.14 in L x 1.88 in W x 3.42 in H
02-110334		6.14 in L x 1.8 in W x 3.42 in H
02-110556		6.14 in L x 1.8 in W x 3.42 in H
02-110557		6.14 in L x 1.8 in W x 3.42 in H
02-138203		6.14 in L x 1.8 in W x 3.42 in H
02-138206		6.14 in L x 1.8 in W x 3.42 in H
02-139074		6.14 in L x 1.8 in W x 3.42 in H
02-139092		6.14 in L x 1.8 in W x 3.42 in H
02-145705		8.66 in L x 1.8 in W x 3.42 in H
02-146994		8.66 in L x 1.8 in W x 3.42 in H
02-147358		8.66 in L x 1.8 in W x 3.42 in H
02-147364		6.14 in L x 1.8 in W x 3.42 in H
02-156537		6.14 in L x 1.88 in W x 3.42 in H
02-157243		8.66 in L x 1.88 in W x 3.42 in H
02-157328		7.87 in L x 1.88 in W x 3.42 in H
02-157610		5.75 in L x 1.88 in W x 3.42 in H
02-300760		8.66 in L x 1.88 in W x 3.42 in H
02-310789		8.66 in L x 1.88 in W x 3.42 in H
02-319302		8.66 in L x 1.88 in W x 3.42 in H
02-323137		8.66 in L x 1.88 in W x 3.42 in H
02-332019		6.14 in L x 1.88 in W x 3.42 in H
02-333163		6.14 in L x 1.88 in W x 3.42 in H
02-333893		8.66 in L x 1.8 in W x 3.42 in H
02-333984		8.66 in L x 1.88 in W x 3.42 in H
02-352298		8.66 in L x 1.8 in W x 3.42 in H
02-354065		5.75 in L x 1.8 in W x 3.57 in H
02-354094		8.66 in L x 1.8 in W x 3.42 in H
02-354359		7.87 in L x 1.8 in W x 3.42 in H
02-354908		8.66 in L x 1.8 in W x 3.42 in H
02-362106		8.66 in L x 1.8 in W x 3.42 in H
02-362107		6.14 in L x 1.8 in W x 3.57 in H
02-362108		8.66 in L x 1.8 in W x 3.57 in H
02-392987		8.66 in L x 1.8 in W x 3.42 in H
02-394649		6.14 in L x 1.8 in W x 3.42 in H
02-395216		6.14 in L x 1.88 in W x 3.42 in H
02-401265		7.87 in L x 1.88 in W x 3.42 in H
02-402836		8.66 in L x 1.8 in W x 3.42 in H
02-412189		8.66 in L x 1.88 in W x 3.42 in H
02-412195		6.14 in L x 2 in W x 3.42 in H
02-413487		6.14 in L x 1.84 in W x 3.42 in H

Product Questions & Answers (1)

Question by: Rex T on Feb 20, 2026, 8:25 AM

what's the actual leakage rate on this valve? running a press application where even small amounts of leakage cause us real headaches

Answer by: Customer Support on Feb 21, 2026, 2:40 PM

At 100 bar, typical leakage comes out to 5 ml per minute per land. That figure is achieved through specially designed spools with increased overlap, which is what sets this apart from a standard directional control valve. The tradeoff is that head loss runs about twice what you'd see on a conventional valve, so that's worth accounting for when you're sizing your system. For a press application where leakage control is the priority, that's exactly the kind of performance this valve was built around.
