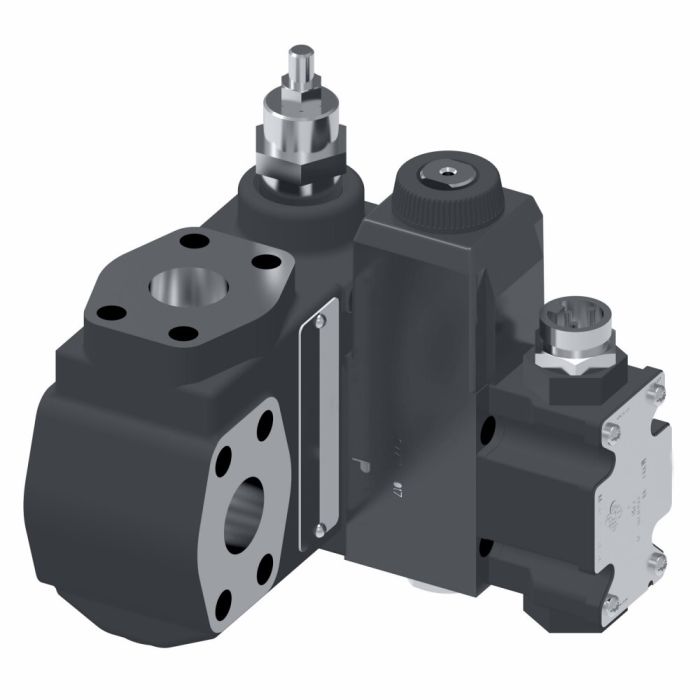

Vickers CPF2S 10 B W 3S M

Description & Features

The Vickers CPF2S 10 B W 3S M is a pressure control valve designed for applications requiring adjustable pressure relief or regulating capabilities. It is designed to limit the pressure in a hydraulic circuit to a desired maximum.

This Vickers valve features a plug-and-play design and is moisture resistant. With a flow rate of 600 liters per minute, this valve is constructed with Buna-N seals and measures 6.57 inches in width.

SKU: 02-321453

Supplier Part Number (MPN): 02-321453

Specifications

Actuator Type Solenoid	Adjustment Type Screw with Locknut	Body Material Iron	Connection Type SAE	Design 20 Series	Dimensions 7.42 in L x 6.57 in W x 6.58 in H	Domestic/Import Domestic	Drain Internal	Electrical Connection 5-Pin Connector	End Type SAE	Gauge Port Thread 1/4 in BSP	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light With Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance Standard	Seal Material Buna-N	Series CPF2S-10 Series	Valve Mount Type Flange-Mounted	Voltage Rating 110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Question by: Glen M on May 24, 2025, 9:05 AM

flow rate on this one shows 600 liters per minute -- is that enough for most mid-size hydraulic systems or is it more suited for bigger setups?

Answer by: Customer Support on May 25, 2025, 7:18 PM

For mid-size systems, 600 liters per minute is actually on the higher end of what you'd typically need. Most mid-range hydraulic circuits run well below that threshold, so this valve gives you solid headroom without restricting flow. It's better suited for applications where demand can spike, or where you're running multiple actuators and need the circuit protected without choking the line.
