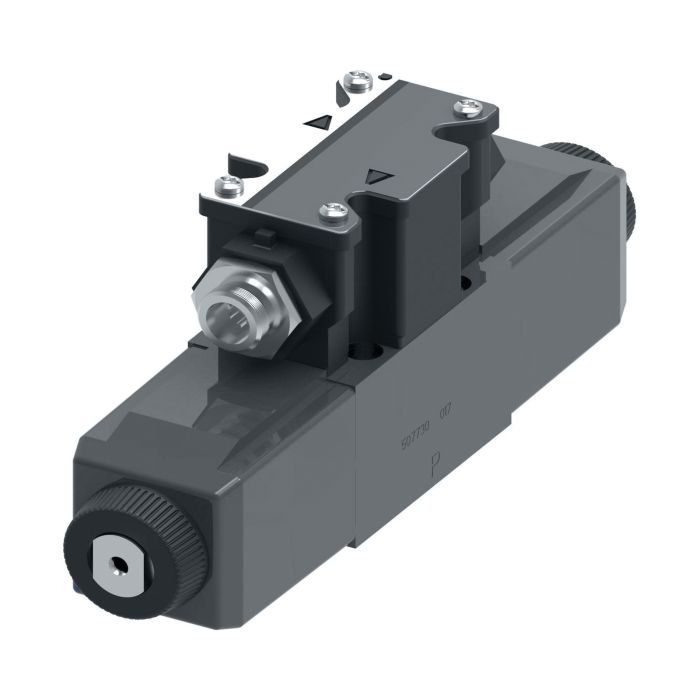

Vickers DG4V 3 0C M FPA5WL

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4V 3 0C M FPA5WL is a single-stage directional control valve rated for flow up to 80 litres per minute at 30 watts. Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic media and operating conditions.

Mountable on industry-standard surfaces, this valve suits a wide range of industrial environments including machine tool, press, primary metal, marine/offshore, die casting and foundry, turbine control, and test and simulation applications. The DG4V-3 series offers extensive model availability, making it well suited for both original equipment and replacement applications where precise directional control is required.

SKU: 02-323420

Supplier Part Number (MPN): 02-323420

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.88 in W x 3.57 in H
Domestic/Import
Domestic
Electrical Connection
5-Pin Connector
Indicator Light
With Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Floyd E on Nov 18, 2025, 7:28 AM
flow rate on this valve is listed at 80 LPM -- is that enough for a mid-size press circuit or would it be cutting it close?
Answer by: Customer Support on Nov 19, 2025, 4:27 PM
For most mid-size press circuits, 80 litres per minute is right in the working range. The DG4V-3 series is built for demanding industrial press applications specifically, so that flow rating isn't just a peak spec on paper. As long as your system demand stays within that 80 LPM ceiling, you've got solid directional control to work with. Where folks run into trouble is pushing a valve beyond its rated flow, and that's not a concern here if your circuit is sized properly.
Question by: Harvey C on Sep 24, 2025, 8:55 PM
Reckon this'll work for a die casting machine?
Answer by: Customer Support on Sep 26, 2025, 6:17 AM
This valve is well-suited for die casting and foundry applications, along with machine tool, marine/offshore, press, primary metal, turbine control, and test and simulation environments.
